Mobile Concrete Batching Plant

  • Capacity: 25m3/h-75m3/h
  • Warranty: 12 months after erection
  • After-sale service: Erection & commissioning, operator training
  • Discharging height: 3800mm
  • Max. dragging speed:: 40km/h

DASION mobile type concrete batching plant

We're here to help: Easy ways to get the answers you need

  • Product Information
  • parameters introduction
  • Product Details

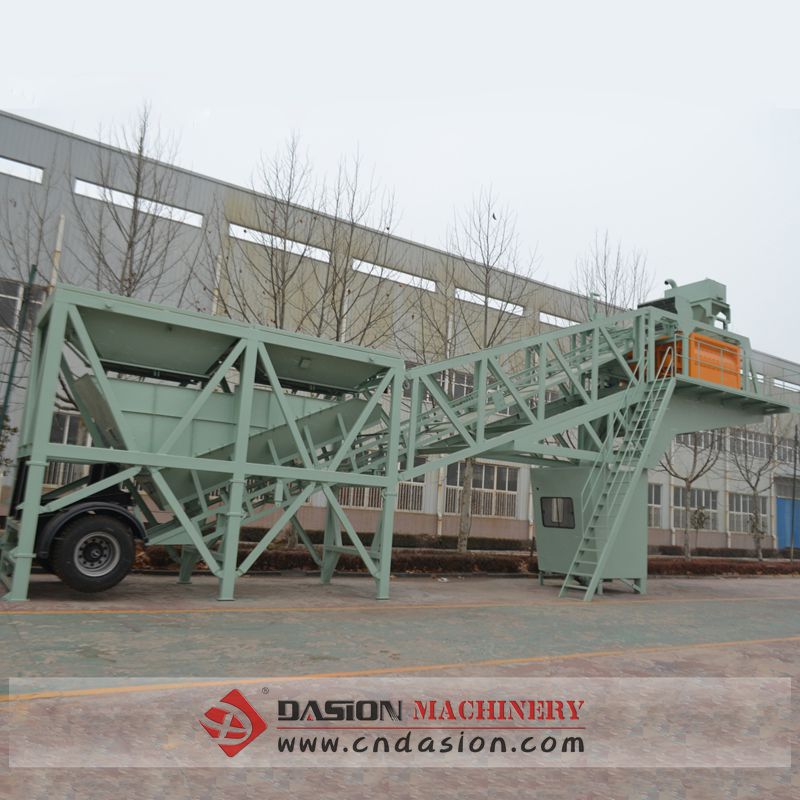

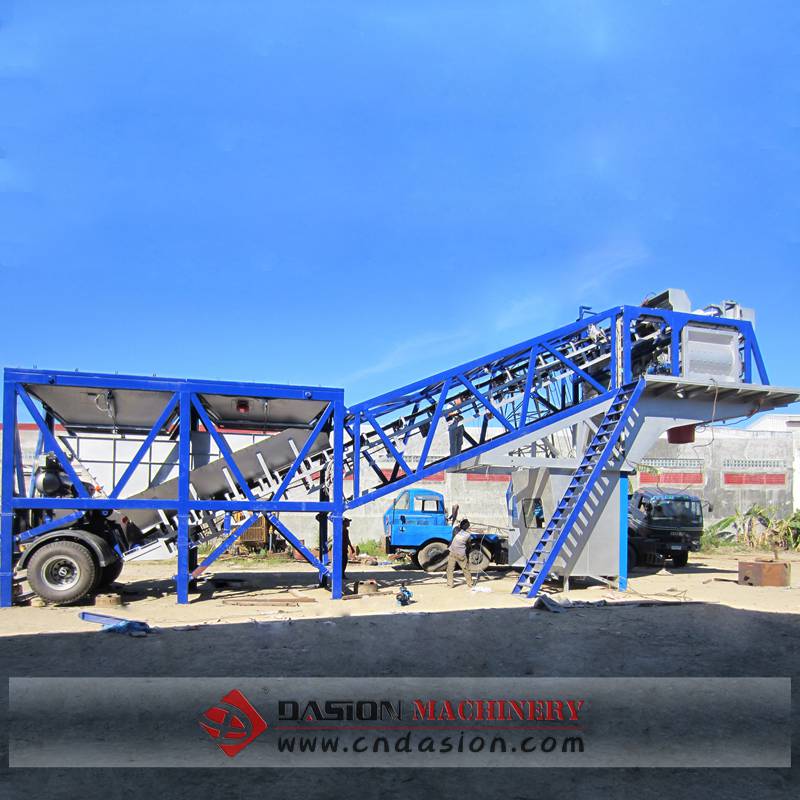

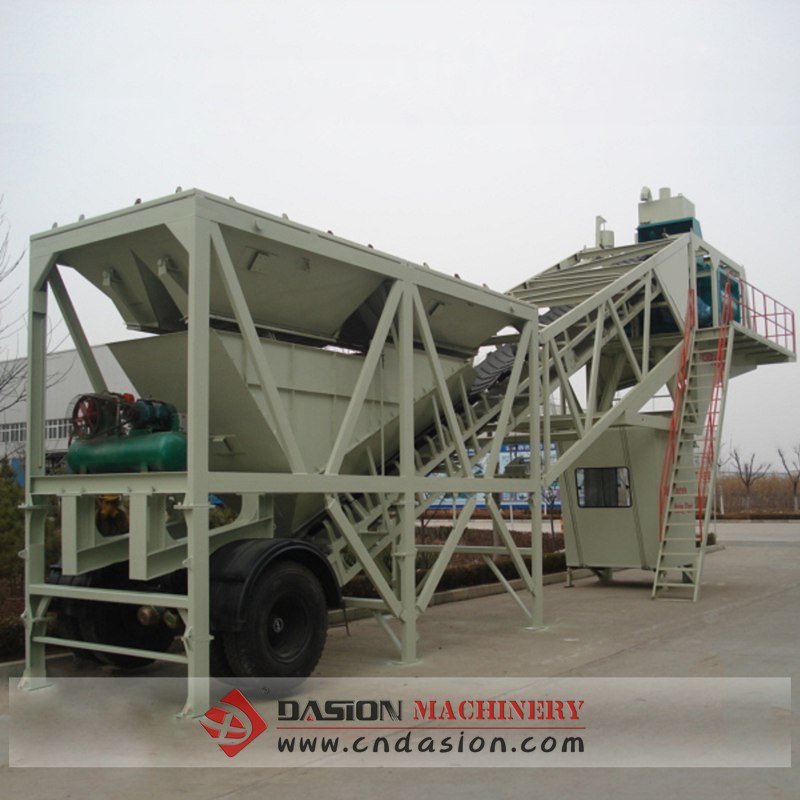

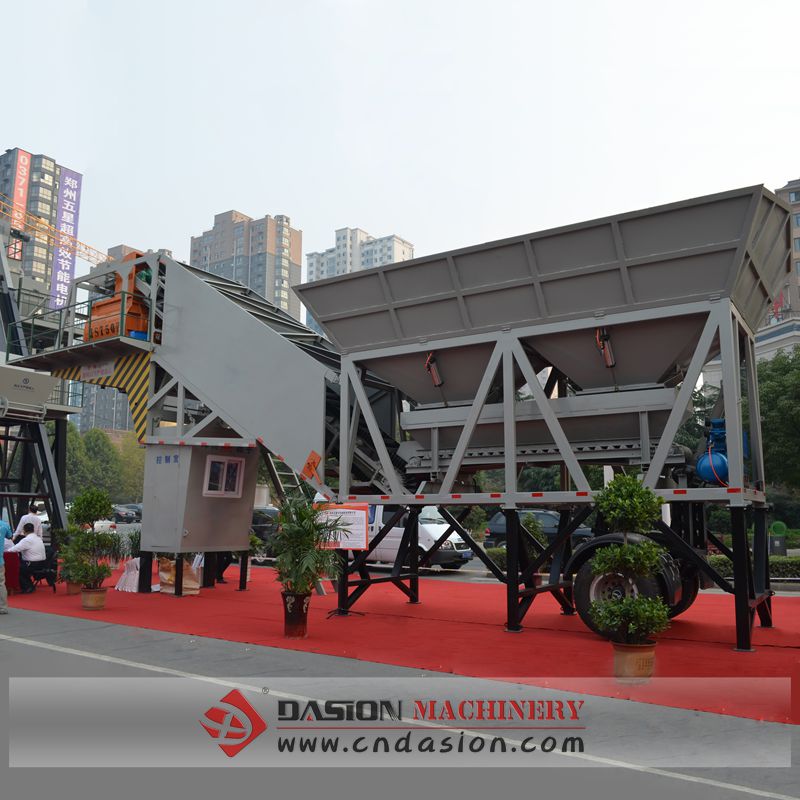

Brief Introduction Of Mobile Concrete Batching Plant

DASION mobile concrete batching plant is a new type supporting and hanging mobile concrete mixing equipment, which is directed designed to the users who have a short construction period, construction grows and frequent transitions. This type of machine is new and unique structure, compact and simple, covers small area, simple installation, high degree of automation, performance has a number of new technologies, on lessons at domestic and foreign experience. Its measurement is accurate and reliable, mixing is uniformly and efficient, transportation is\ rapid and clean, easy to operate, easy removal, safe and reliable supporting and hanging.
DASION mobile concrete mixing plant is best optimization models for mobile construction, such as highway, bridge, port, electricity and water projects.




Features Of Mobile Concrete Mixing Plant

1. Rapid and easily to assemble and disassemble, conveniently to transport. All of the cable connection don’t need to be unloaded, except the external equipment such as screw conveyor and cement silo, etc.

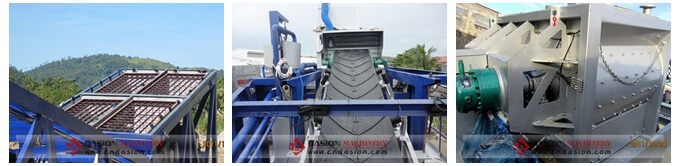

2. The performance of mixing is perfect. It adopts twin-shaft concrete mixer to make the concrete mixing equally in shortest time. For different mixture radios of dry concrete, semi-dry concrete, or plastic concrete, it can make the mixing well.
3. Top-quality configuration, high reliability, accurate measurement, easy operation. The main electric components on concrete mixer reducers, scale load cells and control system are imported brands, which can reduce the failure rate and increase the scale accurate of the equipment.







Parameters Of Mobile Concrete Batching Plant

Model YHZS25 YHZS35 YHZS50 YHZS60 YHZS75
Capacity 25m3/h 35m3/h 50m3/h 60m3/h 75m3/h
Max. dragging speed: 40km/h
Discharging height 3800mm
After-sale service Erection & commissioning, operator training
Warranty 12 months after erection

Concrete mixer JS500 JS750 JS1000 YJS1000 YJS1500
Aggregate batching machine PLD800 PLD1200 PLD1600 PLD2400 PLD2400
Aggregate feeding to mixer by Skirt-side Belt conveyor Special Belt conveyor
Measurement precision ±2% ±2% ±2% ±2% ±2%

Weighing system Water, Cement, Fly-ash, Additive
Weighing precision ±1%

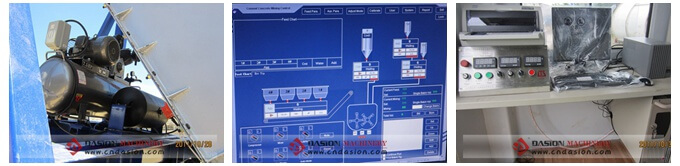

Air system Air compressor,etc

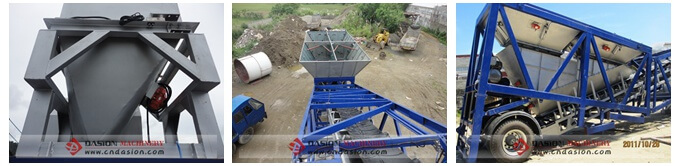

Dragging chassis Drag rod & Leading steering,Front/Back axle & shock absorption,Back wheel,Outrigger

Cement storage and feeding system Optional parts
Screw conveyor diameter Ø219/273mm
Cement silo capacity 30t/50t/100t 50t/100t
Principles Of Mobile Concrete Batching Plant

Mobile concrete batching plant is consist of aggregate loading system, electric auto-measurement system. The core of the whole system is the auto-measurement controlled by computer, which will operate the feeding quantity of cement, sand, gravel, keep the mixture ratio of concrete strictly, to ensure the production quality.
The system works by high-tech of mechanical and electrical integration, establish the auto-running of electronic weighing and feeding trolley and chain procedures. It will also effective organized the generally used machinery in the construction enterprises, such as the concrete mixer, engineering vehicles, belt conveyors, etc, play their best performance.
