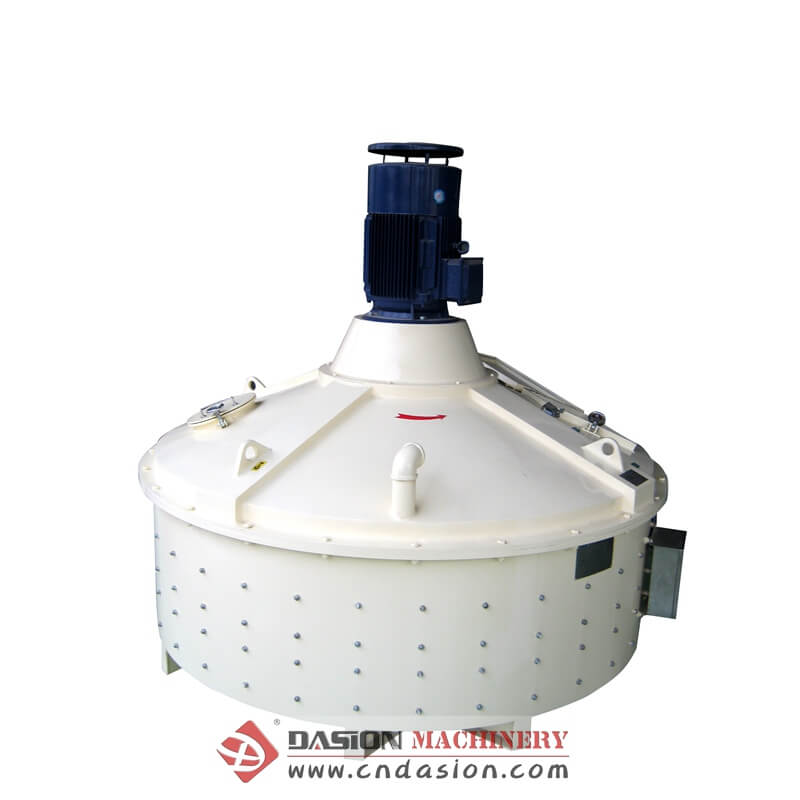

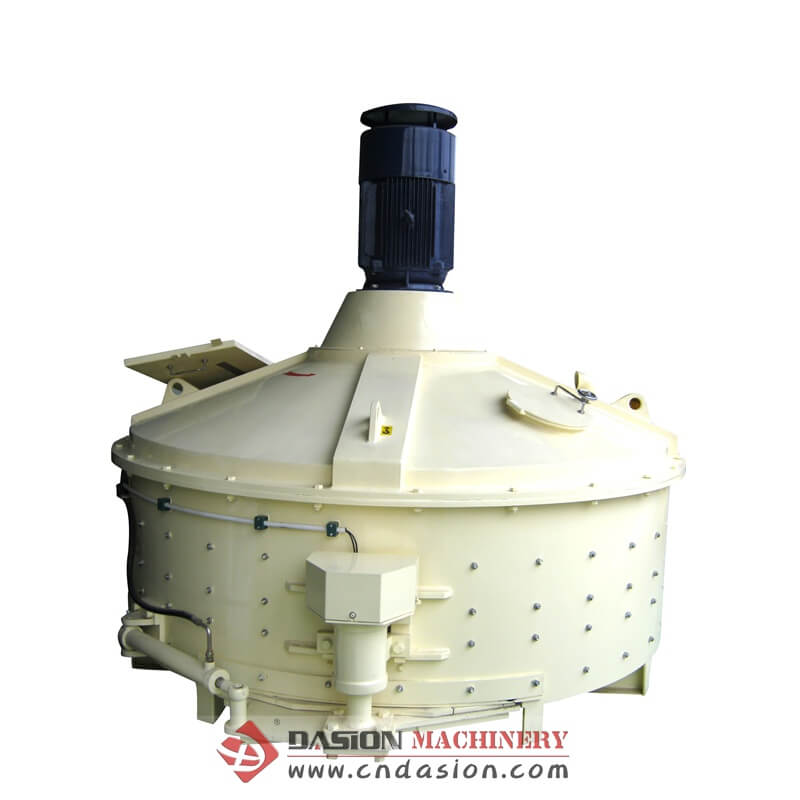

Brief Introduction of JN Vertical-shaft Concrete Mixer

JN series vertical-shaft planetary concrete mixer is core equipment in concrete batching plant and block & precast industry. They can mix various material evenly, be suitable for mixing high-quality dry concrete.

Technical Features of JN Vertical-shaft Concrete Mixer

1. Adopt combined installation for transmit part and mixing drum, conveniently for assemble and maintain equipment, the concrete never meet transmit part, so there is no leakage problem;
2. The main parts, such as reducer, bearing and oil-seal system, are original imported, reliable in transmission;

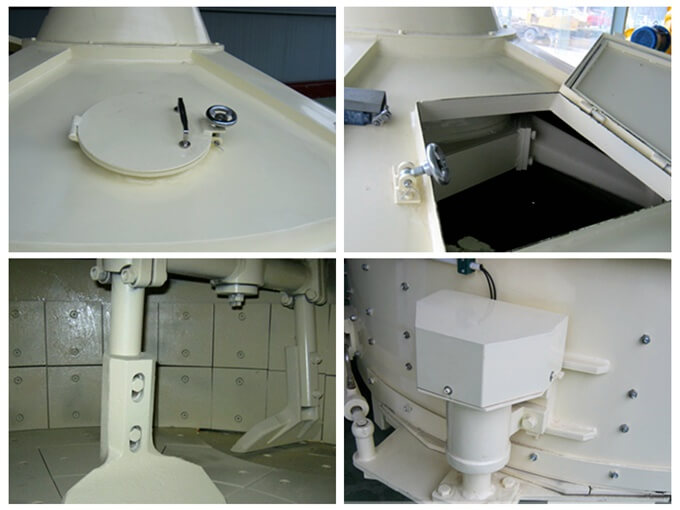

3. Blades & linings adopt high chrome wear-proof materials with long working life;

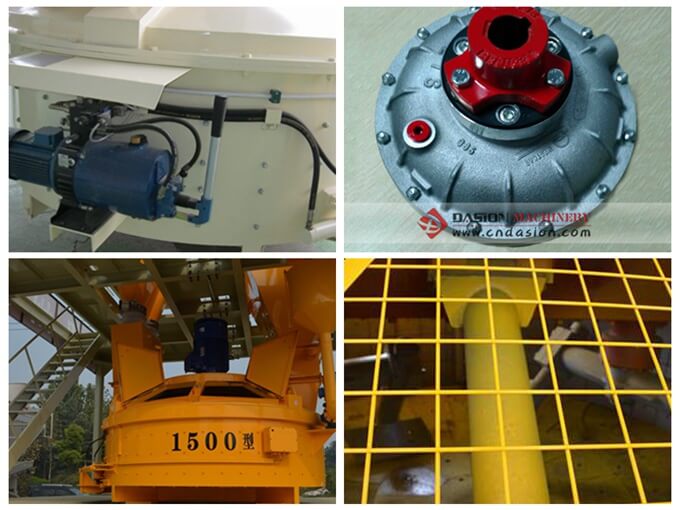

4. Equipped with a mechanical coupling and a hydraulic coupling (option), which can protect the transmission device from overloads and impacts;

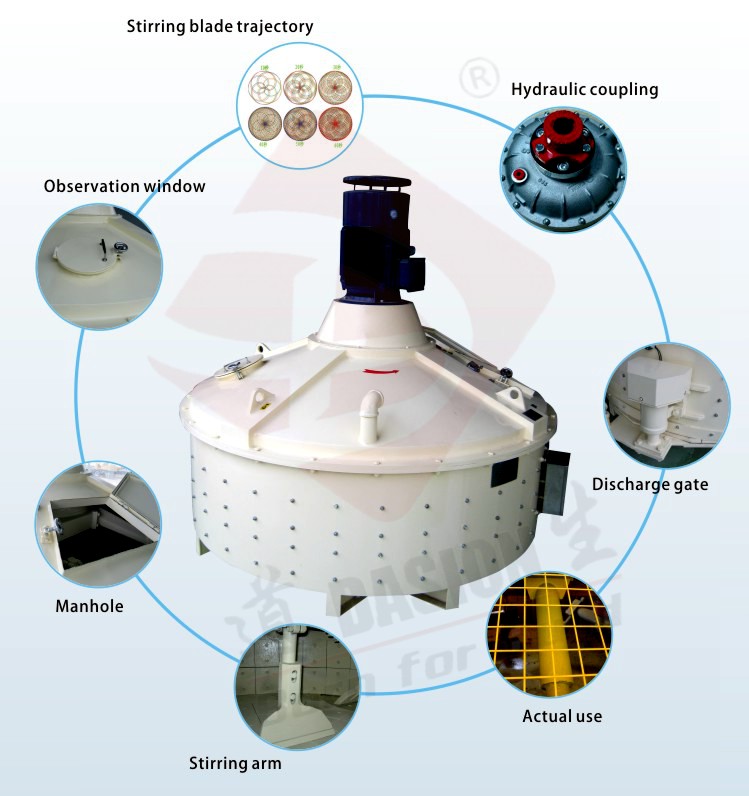

5. Adopt rotary planetary concrete mixer blades, be known for complex trajectories (has both revolution and autorotation), has high-efficiency mixing quality;
6. High-sensitive security switches are used in the maintaining door as optional parts;

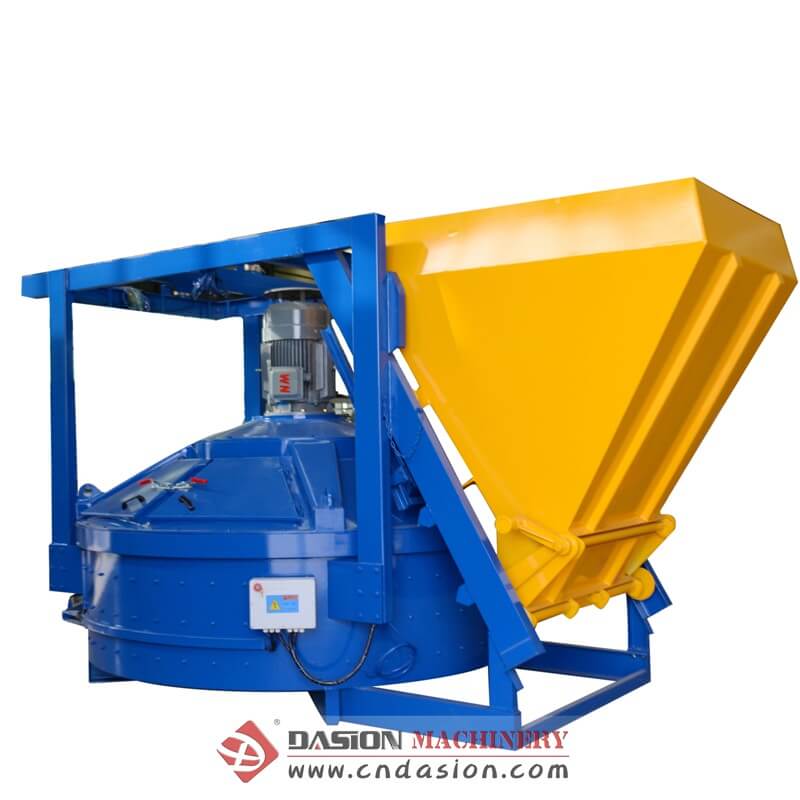

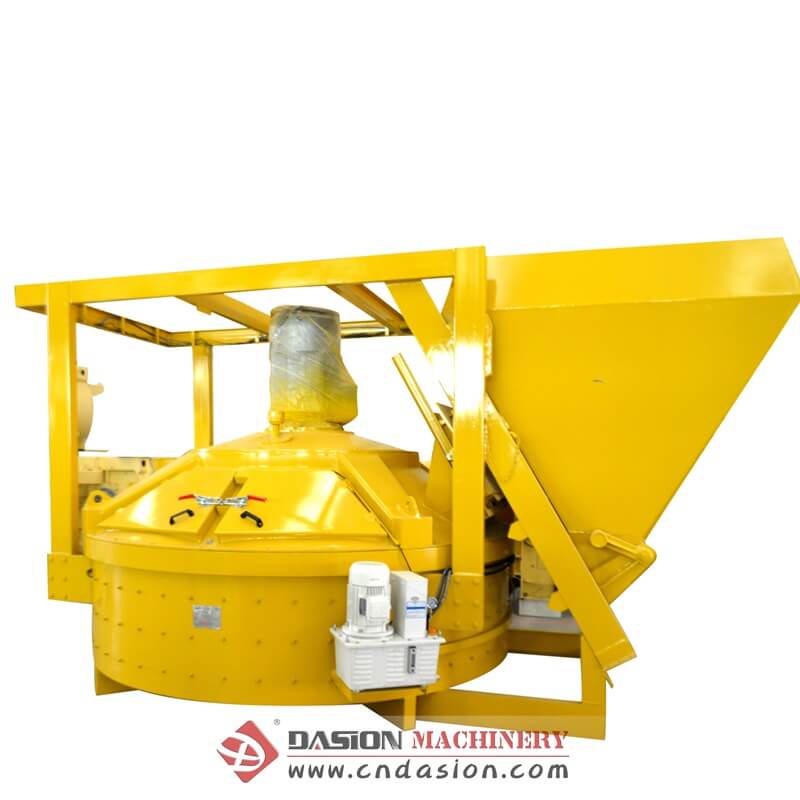

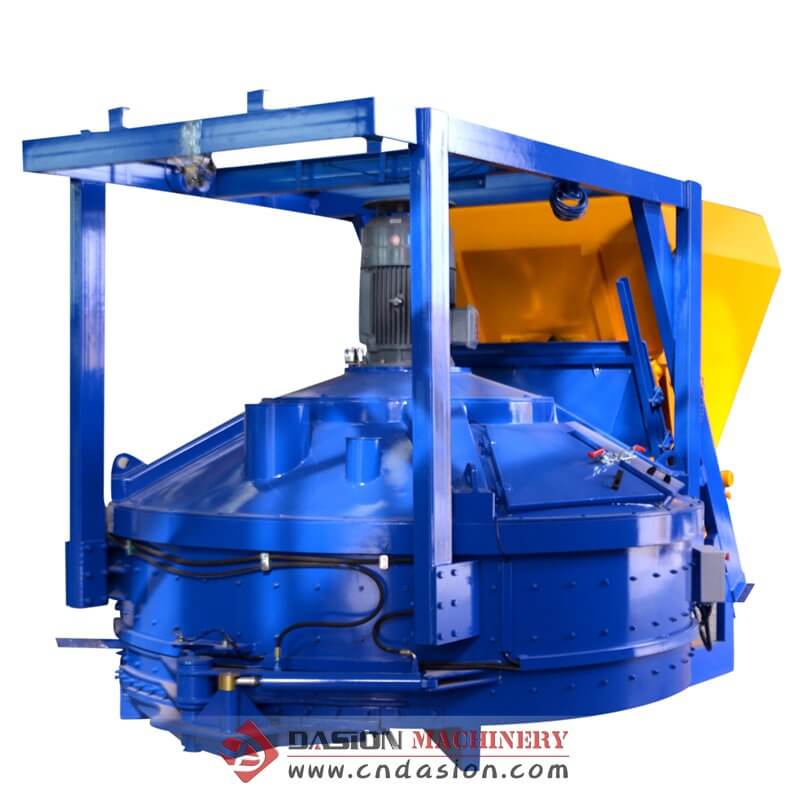

7. Aggregate bucket can be chosen according to the requirements of customers.




Parameters of JN Vertical-shaft Concrete Mixer

Model JN330 JN500 JN750 JN1000 JN1500 JN2000 JN2500 JN3000
Discharging Volume (L) 330 500 750 1000 1500 2000 2500 3000
Charging Volume (L) 500 750 1125 1500 2250 3000 3750 4500
Charging Weight (KG) 800 1200 1800 2400 3600 4800 6000 7200
Diameter of Mixing Drum (mm) 1540 1900 2196 2496 2796 3100 3400 3400
Mixing Power (KW) 15 18.5 30 37 55 75 90 110
Discharging Power (KW) 2.2 2.2 2.2 3 3 4 4 4
Weight (KG) 1700 2000 3500 6000 7000 8500 10500 11000
Lifting Power (KW) 4 4 7.5 11 15 18.5 / /
Bucket Capacity (L) 580 870 1300 1740 2610 3480 / /
Bucket Capacity (KG) 870 1305 1950 2610 3915 5220 / /
Lifting Speed (m/s) 0.25 0.25 0.25 0.25 0.25 0.25 / /


Working Principle of JN Vertical-shaft Concrete Mixer

Electric motor drive gear reducer, the power source from reducer will drive the mixing blades move rotation, the scraper blades move revolution. The mixing trajectories is complex because of the rotation and revolution working together, the mixer inside has strong mixing motion, so that the mixing efficient is high, mixing quality is equally.
