JZC Portable Concrete Mixer

  • Capacity: 6m3/h-35m3/h
  • Charging Capacity: 320L-1500L
  • Discharging capacity: 250L-1000L
  • Max. aggregate size: 60mm-100mm
  • Mixing motor: 4kw-18.5kw
  • Hoisting motor: 4kw-13kw

JZC series concrete mixers are self falling type bipyramid reversed discharge concrete mixing machine. The mixing drum is driven by gear ring. In working style, clockwise rotating for concrete mixing

We're here to help: Easy ways to get the answers you need

  • Product Information
  • parameters introduction
  • Product Details

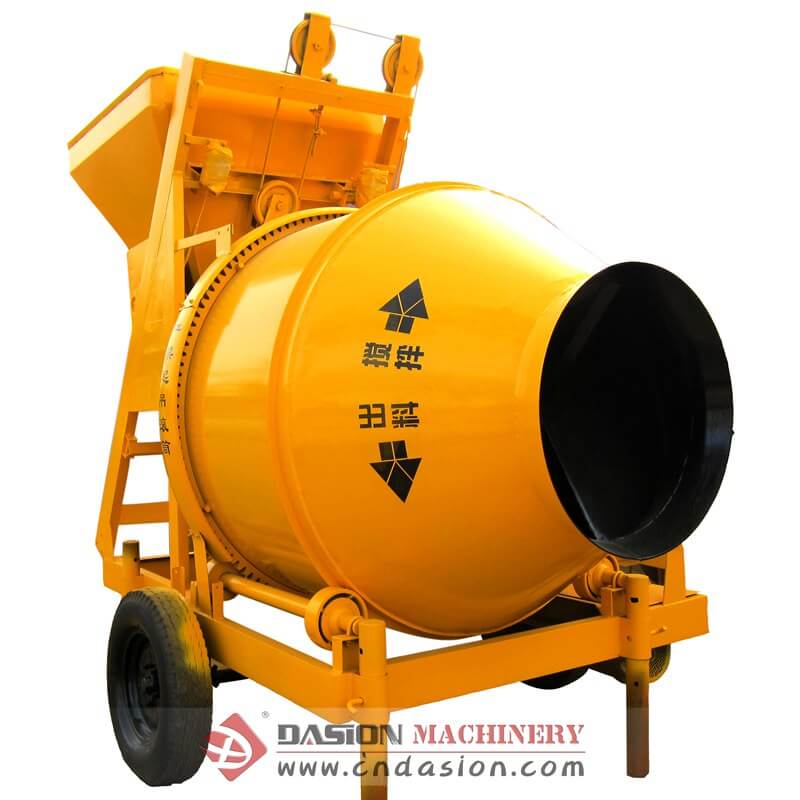

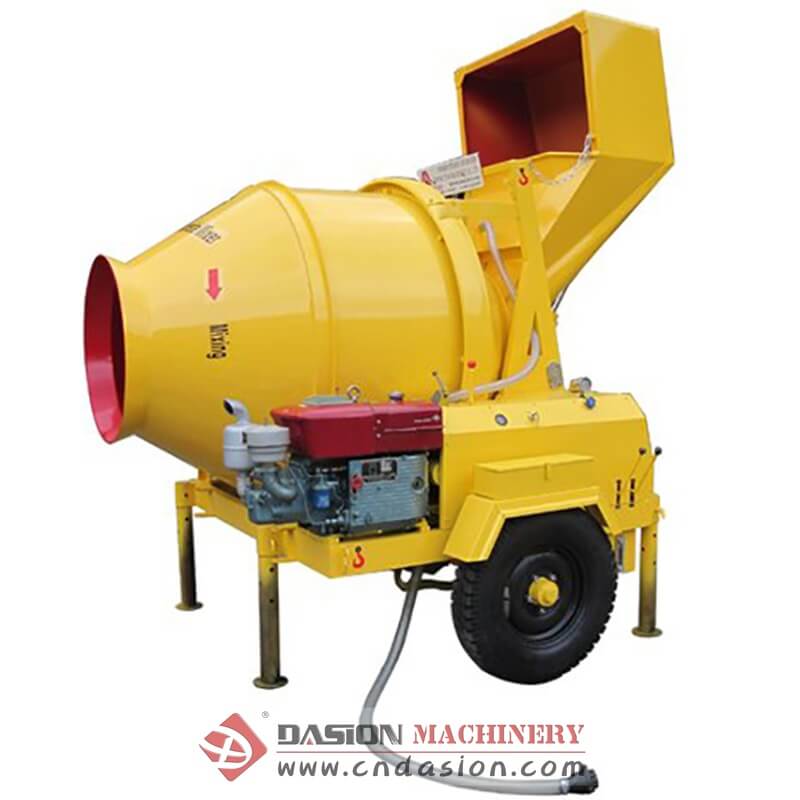

Brief Introduction of JZC Protable Concrete Mixer

JZC series concrete mixers are self falling type bipyramid reversed discharge concrete mixing machine. The mixing drum is driven by gear ring. In working style, clockwise rotating for concrete mixing, and anti-clockwise rotating for concrete discharging.

Technical Features of JZC Protable Concrete Mixer

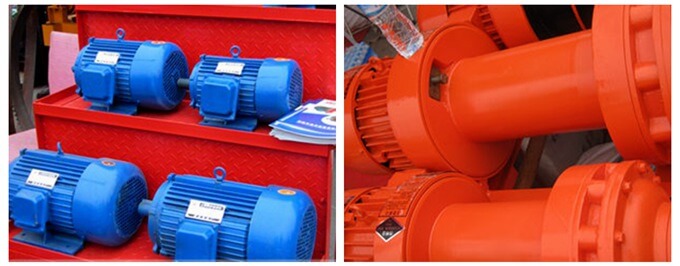

1. Adopt electric motor for power supply;
2. Mixing drum is driven through gear ring. Low noise, Low energy consumption, no slip in rainy weather, easily operate;

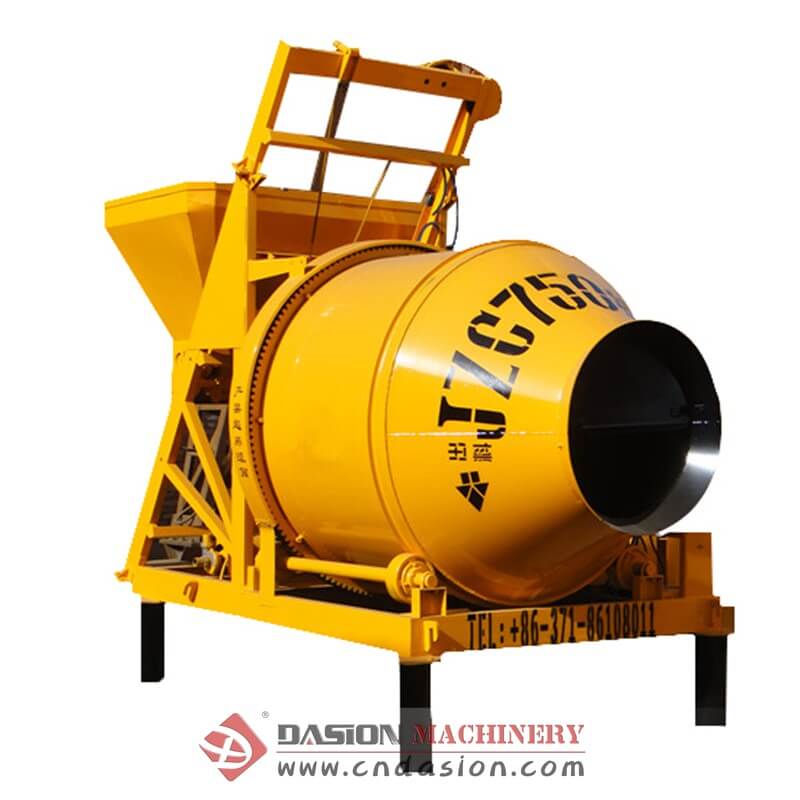

3. JZC series concrete mixers are portable concrete mixers with 2 tyres, except JZC750 is fixed concrete mixer;
4. Assemble lifting bucket, which mouth is lower than ground, be conveniently for aggregate loading and feeding.

Parameters of JZC Protable Concrete Mixer

Model JZC250 JZC350 JZC500 JZC750 JZC1000
Discharging capacity 250L 350L 500L 750L 1000L
Charging Capacity 320L 560L 800L 1200L 1500L
Capacity 6-8m3/h 10-14m3/h 18-20m3/h 20-22m3/h 30-35m3/h
Drum rotating-speed 17r/min  14r/min  13r/min 13r/min 10r/min
Max. aggregate size 60mm 60mm 60-80mm 60-80mm 80-100mm
Water feeding precision ≤2% ≤2% ≤2% ≤2% ≤2%
Mixing motor 4kw 5.5kw 11kw 15kw 18.5kw
Hoisting motor 4kw 4.5kw 5.5kw 7.5kw 13kw
Water pump motor 0.55kw 0.55kw 0.75kw 1.1kw 1.5kw
Tyre spec. 6.50-16 6.50-16 7.50-16 7.50-16 7.50-16
Max. dragging speed 20km/h 20km/h 20km/h 20km/h 20km/h
Dimension (L x W x H ) 2260x1990
x2750mm
2766x2140
x3000mm
3116x2200
x5460mm
3226x2056
x4060mm
4000x2350
x4350mm
Total weight 1300kg 1950kg 3100kg 4200kg 4500kg



Working Principle of JZC Protable Concrete Mixer

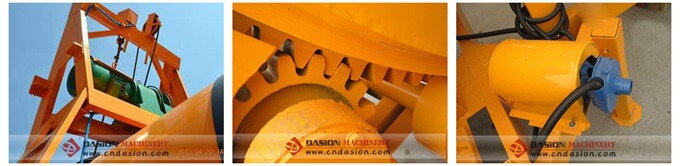

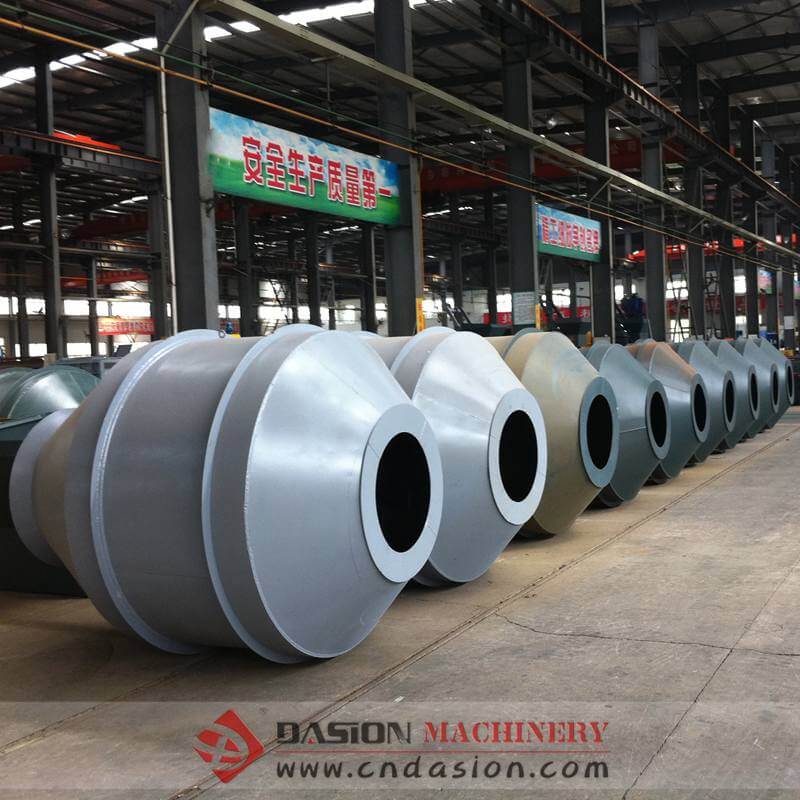

1. Assemble gear ring around the external surface of the mixing drum, and the driven-shaft has small gear engages the teeth of the gear ring. Meanwhile, assemble spiral mixing blades on the internal surface of the mixing drum.
2. In working style, relying on the drum rotating and inner material own gravity, the drums clockwise rotating for concrete mixing, and the anti-clockwise rotating for concrete discharging.
3. In non-working style, JZC series concrete mixer can move to other working site by trailer dragging.
