JZM Electrical Concrete Mixer

  • Capacity: 13m³/h-35m3/h
  • Charging volume: 560L-1500L
  • Discharging volume: 350L-1000L
  • Mixing motor: 5.5kw-18.5kw
  • Hoisting motor: 4.5kw-13kw
  • Max. dragging speed: 20km/h

JZM series concrete mixers are self falling type bipyramid reversed discharge concrete mixing machine. The mixing drum is driven by friction between rubber pad and riding wheel.

We're here to help: Easy ways to get the answers you need

  • Product Information
  • parameters introduction
  • Product Details
Brief Introduction of JZM Electrical Drum Concrete Mixer

JZM series concrete mixers are self falling type bipyramid reversed discharge concrete mixing machine. The mixing drum is driven by friction between rubber pad and riding wheel. In working style, clockwise rotating for concrete mixing, and anti-clockwise rotating for concrete discharging.

Technical Features of JZM Electrical Drum Concrete Mixer

1. Adopt electric motor for power supply;
2. Mixing drum is driven through friction between rubber pad and riding wheel. High efficiency, good mixing quality, easily operate;

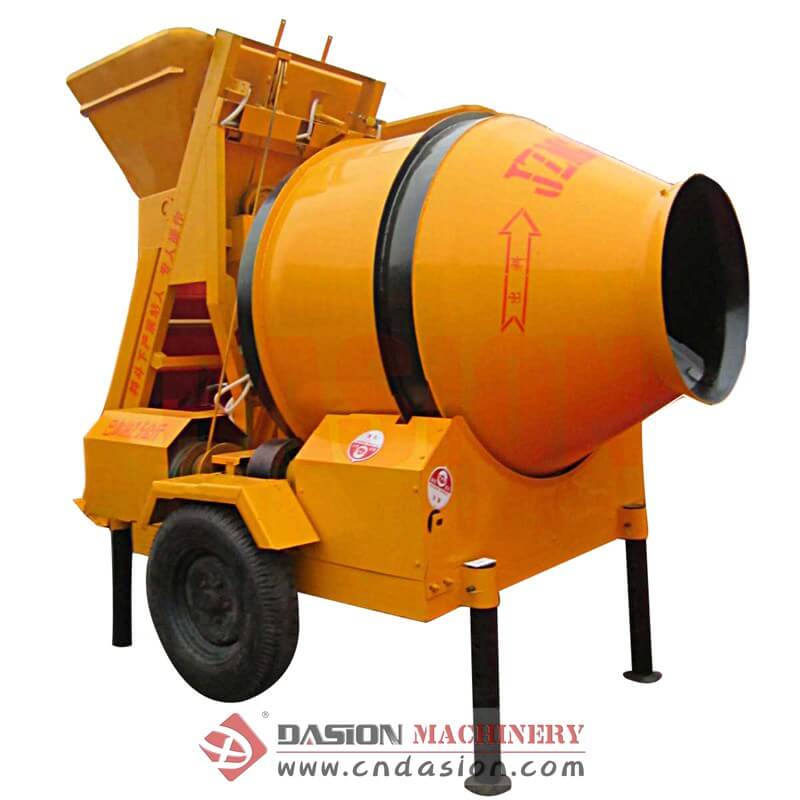

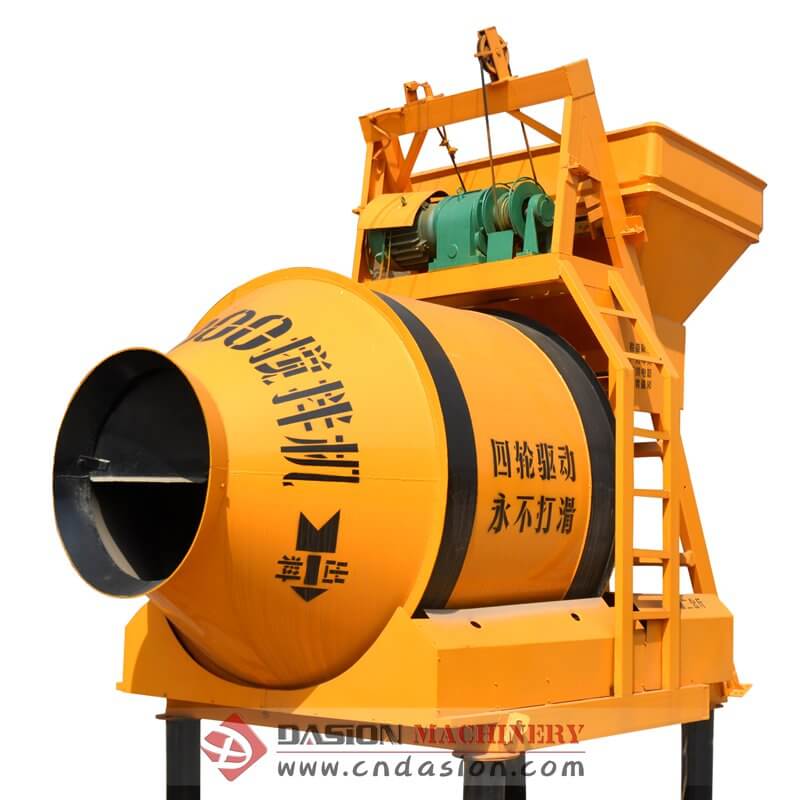

3. JZM series concrete mixers are portable concrete mixers with 2 tyres, except JZM750 is fixed concrete mixer;

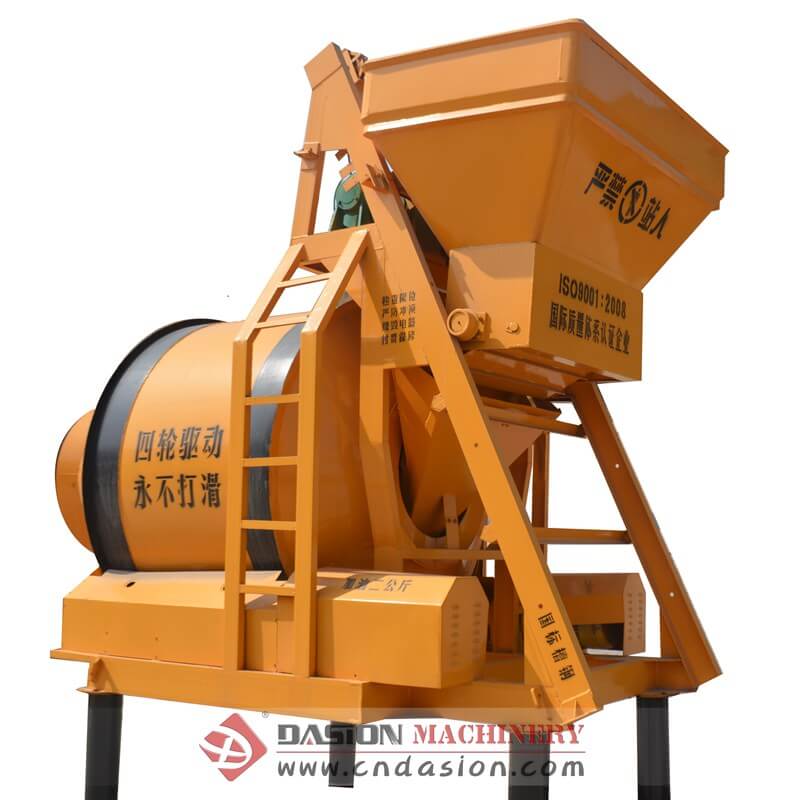

4. Assemble lifting bucket, which mouth is lower than ground, be conveniently for aggregate loading and feeding.



Parameters of JZM Electrical Drum Concrete Mixer

Model JZM350 JZM500 JZM750 JZM1000
Discharging volume 350L 500L 750L 1000L
Charging volume 560L 800L 1200L 1500L
Capacity 13m³/h 18-20m³/h 30-35m³/h 40-50m3/h
Drum rotating-speed 15r/min 15r/min 12.26r/min 10r/min
Max. aggregate size 60mm 60mm 80mm 100mm
Water feeding precision Error ≤2% Error ≤2% Error ≤2% Error ≤2%
Mixing motor 5.5kw 11kw 15kw 18.5kw
Hoisting motor 4.5kw 4.5kw 7.5kw 13kw
Water pump motor 0.75kw 1.1kw 1.1kw 1.5kw
Max. dragging speed 20km/h 20km/h 20km/h 20km/h
Total weight 1970kg 4100kg 4300kg 4500kg
Dimension (L x W x H ) 2766×2140
×3000mm
3116×2050
×4060mm
3226×2200
×4060mm
4000x2350
x4350mm



Working Principle of JZM Electrical Drum Concrete Mixer

1. Assemble rubber pad around the external surface of the mixing drum, and the driven-shaft has riding wheels rub the rubber pad. Meanwhile, assemble spiral mixing blades on the internal surface of the mixing drum.
2. In working style, relying on the drum rotating and inner material own gravity, the drums clockwise rotating for concrete mixing, and the anti-clockwise rotating for concrete discharging.
3. In non-working style, JZM series concrete mixer can move to other working site by trailer dragging.
