Cement Silo

Cement silo is closed warehouse for store up powder material such as cement, fly-ash, foodstuff, etc.

We're here to help: Easy ways to get the answers you need

  • Product Information
  • parameters introduction
  • Product Details
Brief Introduction of Cement Silo
Cement silo is closed warehouse for store up powder material such as cement, fly-ash, foodstuff, etc. The silo is assembled with material level indicator to know how much inner material left, also assembled with pneumatic air brake system at the silo bottom, to avoid material blocking and discharging non-smoothly because of the gravity.

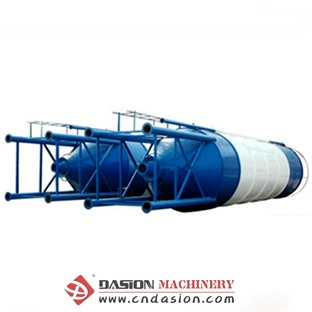

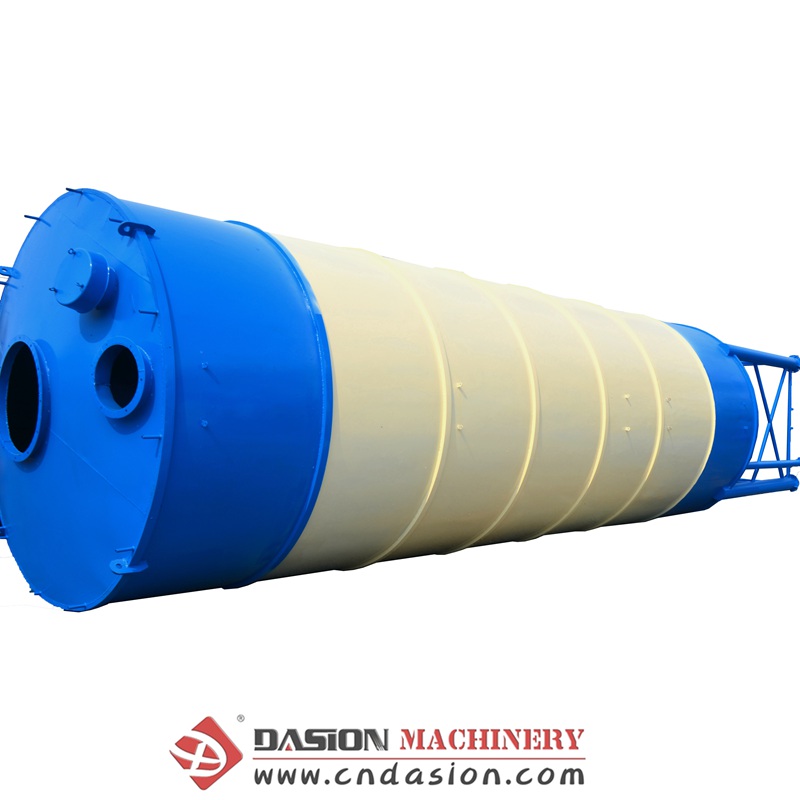

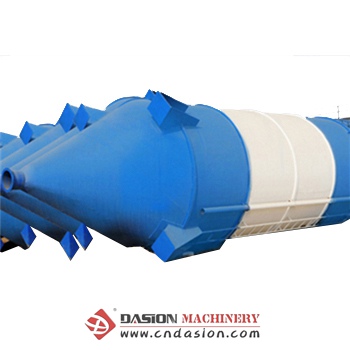

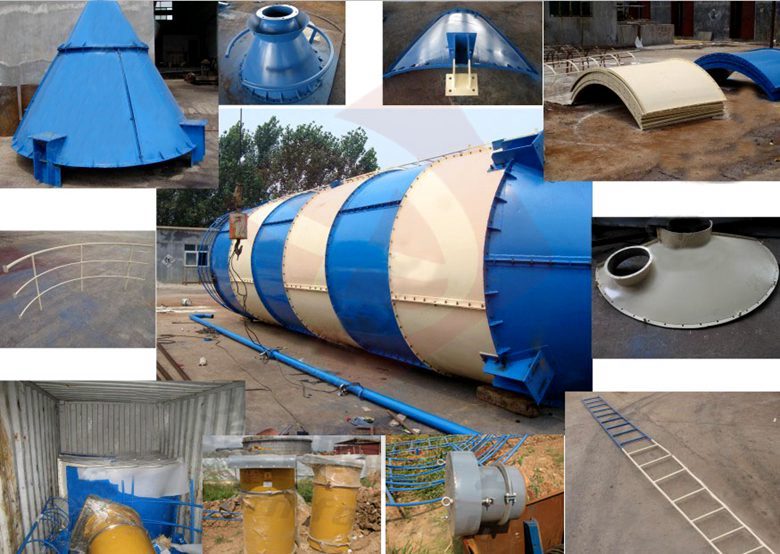

DASION plated cement silo, which is also called Separated cement silo or Sectional silo, is specially designed for long-term transportation, such as ocean shipping, railway transportation, etc. The series of silo can be easily loaded into containers, which can save much space and freight charge.


Parameters of Cement Silo
Capacity Diameter of silo Height of silo Total Height Assort with mixer Assort with screw conveyor
30T Φ3m 4.8m 11.4m JD350 Φ140/Φ168
50T Φ3m 5.4m 12m JS500/JS750 Φ168/Φ219
80T Φ3m 9m 15.6m JS750/JS1000 Φ219
100T Φ3m 11.4m 18m JS1000-JS2000 Φ219/Φ273
150T Φ3.3m 23.5m 29m JS1000-JS3000 Φ273
200T Φ4.5m 18.6m 25.2m JS1500-JS3500 Φ273/Φ323
300T Φ4.5m 24.6m 29.5m JS2000-JS4000 Φ323/Φ407
500T Φ6M 22.2m 28.8m JS3000-JS6000 Φ407
