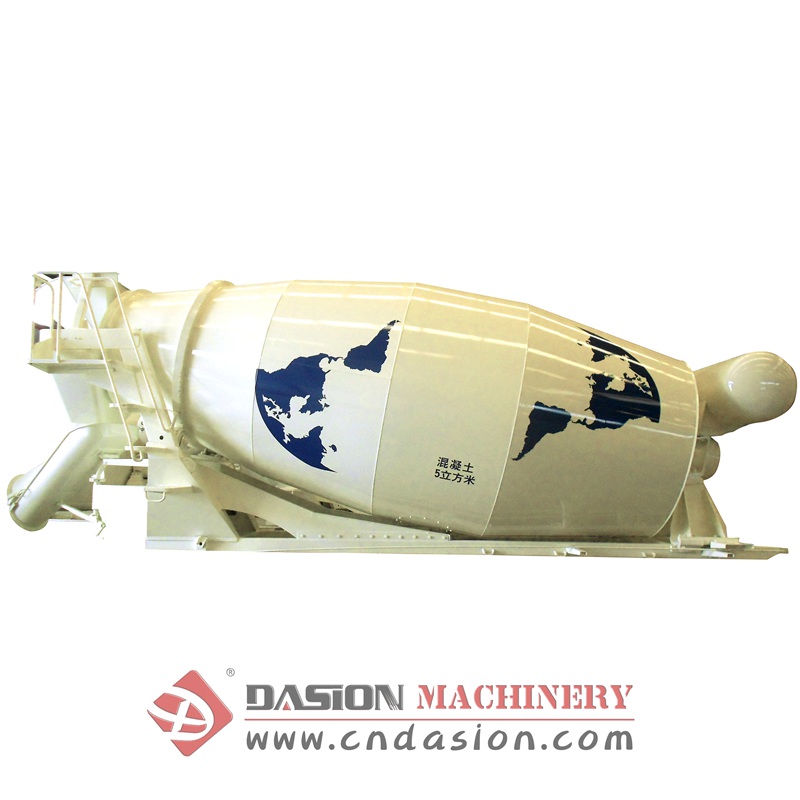

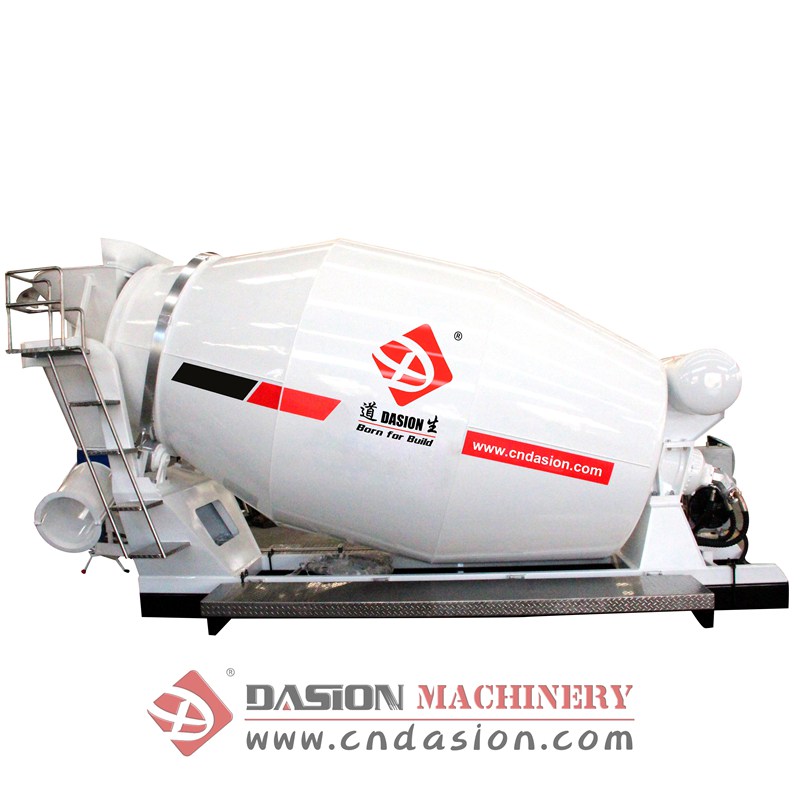

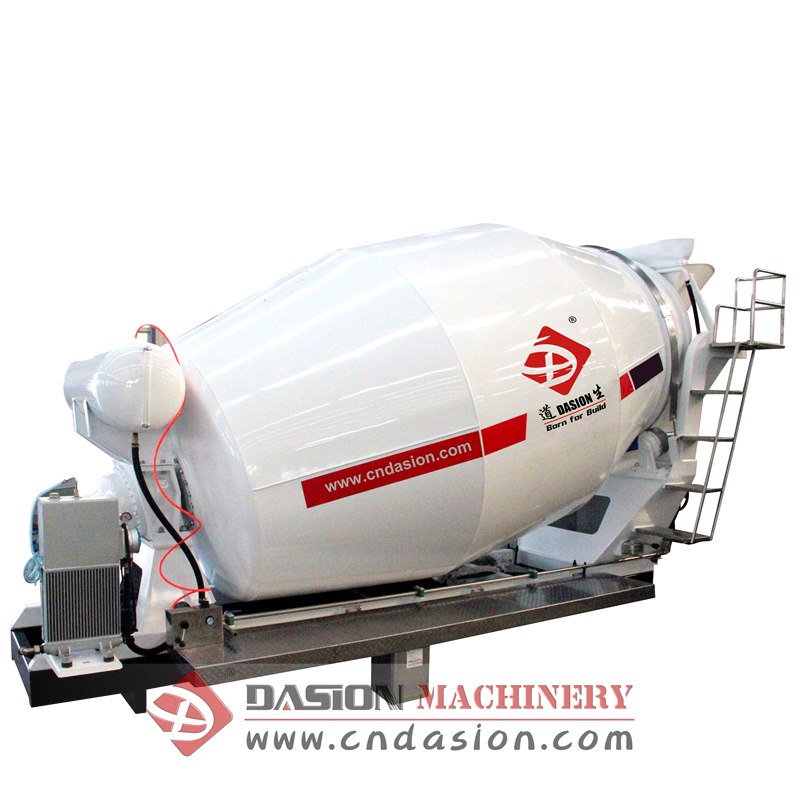

Concrete Mixing Drum

  • Mixing capacity: 4-18m3
  • Feeding speed: ≥2/3m3/min
  • Mixing speed: 0-14r/min
  • Discharge residue rate: ≤0.5%
  • Capacity of water tank: 150-450L
  • Water supply method: Pneumatic

1. Concrete mixing tank with Superior performance 2. High quality of hydraulic system 3. The design of low angle of inclination 4. Simple operation and useful application

We're here to help: Easy ways to get the answers you need

  • Product Information
  • parameters introduction
  • Product Details
Main Features Of Concrete Mixing Drum

1. Concrete mixing tank with Superior performance

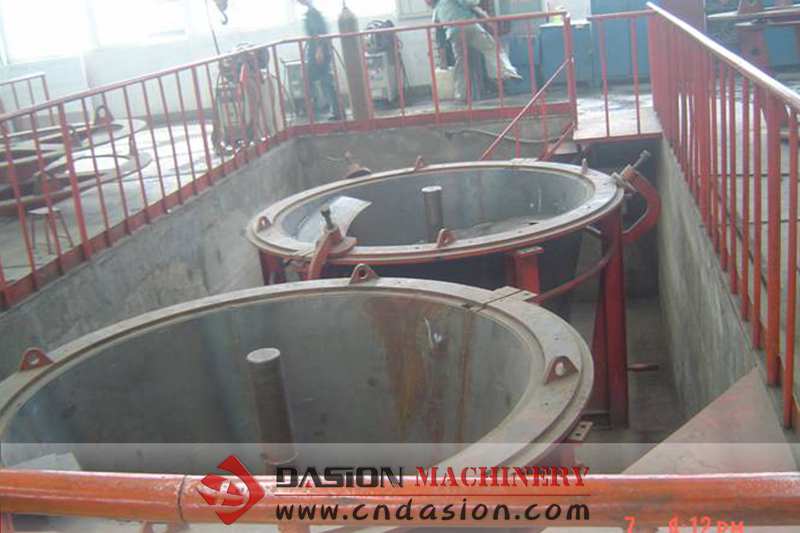

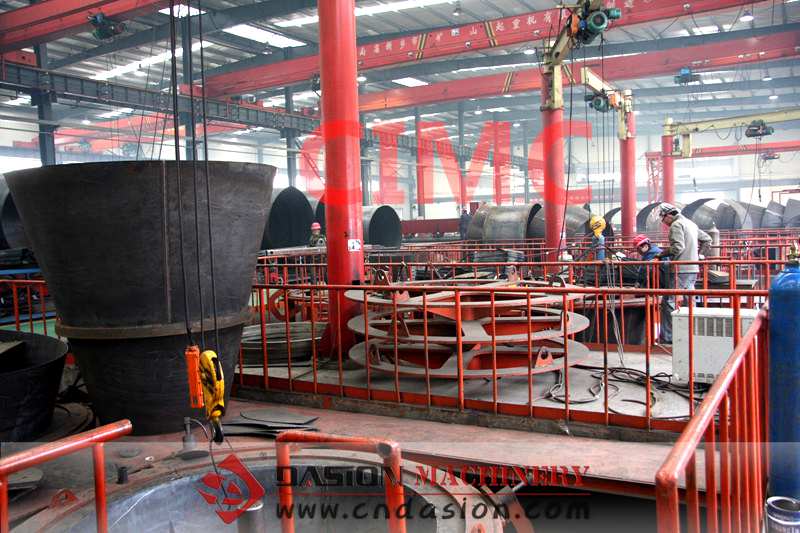

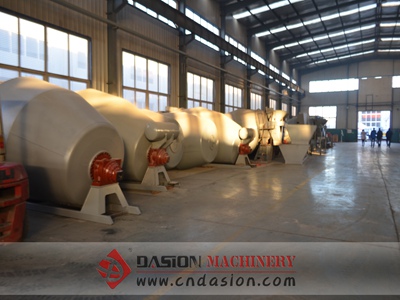

Concrete mixing tank adopt auto-welding technology, all welding seams are checked by fault-indicator to make sure its welding quality.
Large rounded spinning head of concrete mixing tank, flawlessly mixing and no residual concrete
Optimized design of concrete mixing tank, improve loading ability, reasonable mixing arms and holes distribution can ensure mixing on average without separation.

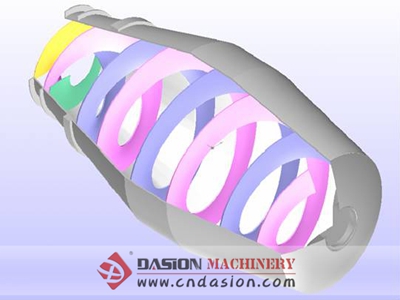

Mixing blades adopt three-dimensional double helix mixing design, reducing remnant rate of 0.6%, better than international standard (international standard is 2%), ahead of industry standard (industry standard is 0.7%~1%)

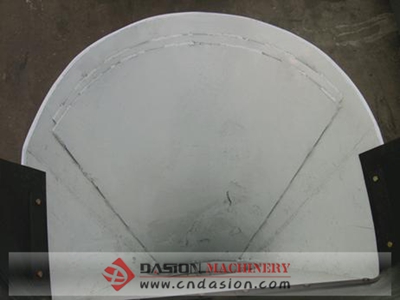

The blades are made by punching machine, ensure the dimension is exactly correct, the blades has unique wear – resisting protection structure, improving blade service life 80%

2. High quality of hydraulic system
Hydraulic system adopt international top-brand, such as Germany, Italian, American brand with integral structure, excellent performance
All hose connector adopt Germany EMB, and the hose adopt Italian MANULI
Meeting customers’ various special need, and depend on customers’ requirement, we can also adopt Chinese famous brand hydraulic system and Accessories

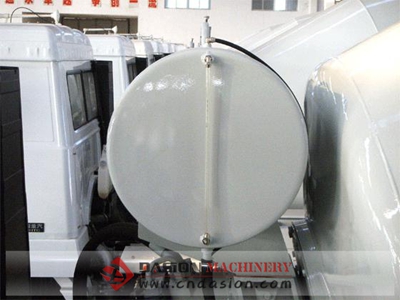

Adopt combination of oil tanker and radiator, equipped with temperature controller and vacuum meter, ensure the oil change and maintenance

3. The design of low angle of inclination
Center of gravity is lower 5% than similar concrete mixing truck, safety factor higher 10%

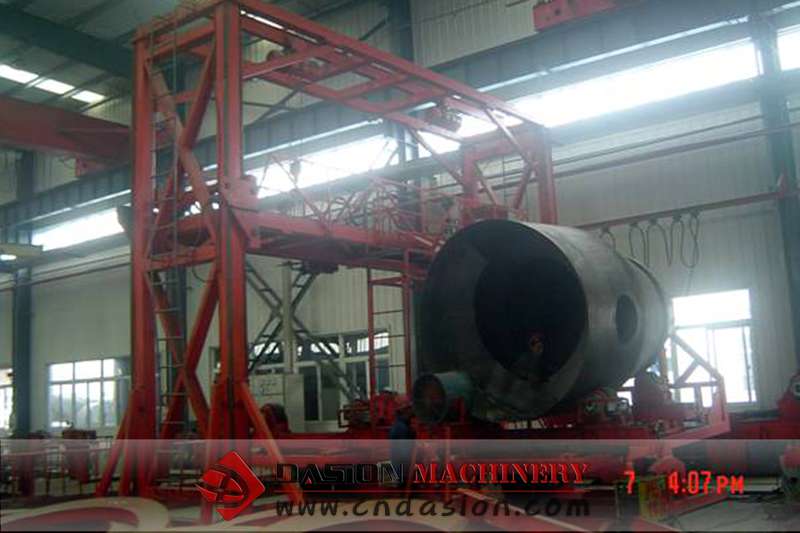

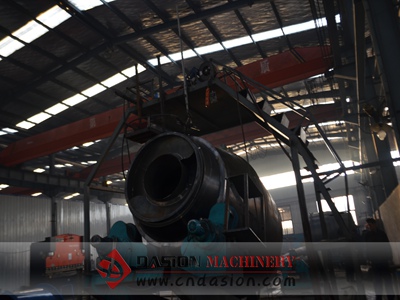

Tank-frame adopt tri-coordinate lineation machine to manufacture, laser-checking ensure the precise locating







Parameters Unit 4m3 5m3 6m3 7m3 8m3 9m3 10m3 12m3 14m3 15m3 16m3 18m3
Drum leaning angle ° 16 16 16 16 15 15 15 15 15 15 15 15
Geometric volume of drum m3 7.6 8.8 9.3 12.6 13.3 14.7 16 19.6 21.9 23.8 25.3 26.4
Mixing capacity m3 4 5 6 7 8 9 10 12 14 15 16 18
Feeding speed m3/min ≥2 ≥2 ≥2 ≥2 ≥3 ≥3 ≥3 ≥3 ≥3 ≥3 ≥3 ≥3
Discharging speed m3/min ≥1.5 ≥1.5 ≥1.5 ≥1.5 ≥2 ≥2 ≥2 ≥2 ≥2 ≥2 ≥2 ≥2
Mixing speed r/min 0~9 0~9 0~9 0~9 0~14 0~14 0~14 0~14 0~14 0~14 0~14 0~14
Discharge residue rate % ≤0.5 ≤0.5 ≤0.5 ≤0.5 ≤0.5 ≤0.5 ≤0.5 ≤0.5 ≤0.5 ≤0.5 ≤0.5 ≤0.5
Slump range mm 70~260 70~260 70~260 70~260 70~260 70~260 70~260 70~260 70~260 70~260 70~260 70~260
Capacity of water tank L 150 150 150 150 450 450 450 450 450 450 450 450
Water supply method   Pneumatic

Standard Brand
Hydraulic pump Eaton/Rexroth/High-Tech Italian ARK/Sauer/Rexroth/Germany ZF
Hydraulic motor
Reducer High-Tech Germany ZF/ Italian PMP/Eaton



4. Simple operation and useful application

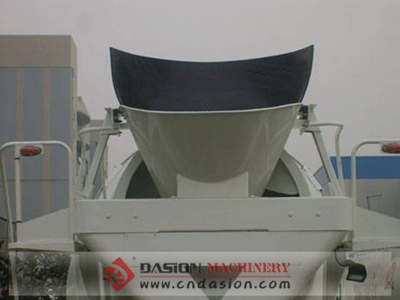

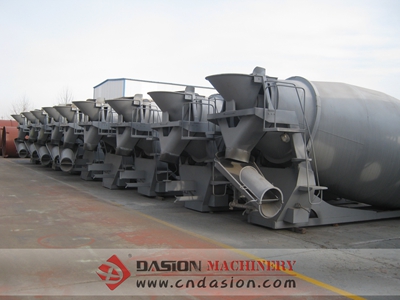

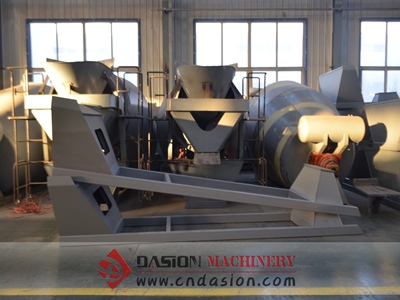

Feeding inlet with cone-hole make feeding faster, and reduce the impacting to mixing blades, discharging outlet with reasonable design to ensure the discharging continuously.
Operate-handle can control the concrete mixing tank rotating speed and direction, with reliable position-lock device.

5. Multi types of Chassis Matched

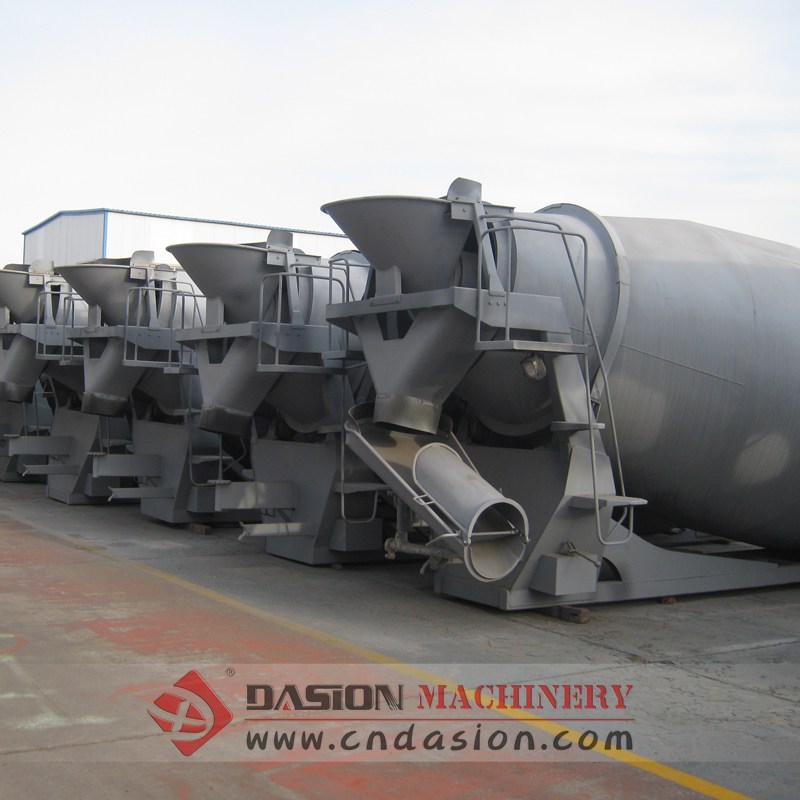

The upper can match with different chassis of 2 or 3 axles
The model of chassis match: ISUZU/SINOTRUK/NISSAN/HINO/FOTON/DFM-Dongfeng/FAW-Jiefang/SHACMAN, etc.
Upper parts can be designed according to customers’ required chassis
