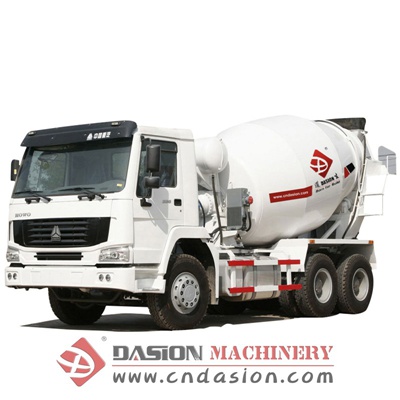

Transit Mixer

  • Mixing capacity: 4-18m3
  • Feeding speed: ≥2/3m3/min
  • Mixing speed: 0-14r/min
  • Discharge residue rate: ≤0.5%
  • Capacity of water tank: 150-450L
  • Water supply method: Pneumatic

DASION Transit Mixer adopts European modern style, featuring attractive appearance, rational structure and stable performance.Different steel materials for different parts of tank body, which is made from China famous steel factories. Servic

We're here to help: Easy ways to get the answers you need

  • Product Information
  • parameters introduction
  • Product Details
Brief Introduction of Transit Mixer

DASION series transit mixer adopts European modern style, featuring attractive appearance, rational structure and stable performance. Different steel materials for different parts of tank body, which is made from China famous steel factories. Service life is 1.5 times than average.
Adopt CNC plasma equipment and leading international fixtures, ensure the accuracy of the parts manufacturing key weld using CNC automatic welding production lines to ensure the weld strength. Modular design and assembly line keeps product quality consistency. Structure parts adopt blasting pretreatment process; Painting work used luxury coach paint process, completely in accordance with the coating process of industry leading technology, effectively guarantee the quality of the vehicle.
DASION series concrete mixer truck covers mixing capacity 3-20m3 all volume products, mainly adopts ISUZU/SINOTRUK/NISSAN/HINO/FOTON/DFM-Dongfeng/FAW-Jiefang/SHACMAN/Auman/JAC/North-BENZ, etc. Special upper tank projects for special chassis, to make each other match reasonable.






Upper drum capacity Optional Chassis Brand Chassis Parameters
4m3, 6m3 Forland Overall dimension (L*W*H)(mm) 6460x2255x3300
Chassis model BJ1143VJPFA-1
Engine model/power (KW) YC4D130-33/96
Emission standard Euro-III
Tyres/Brake 825-20/Air brake
Wheel base(mm) 3400
Angle of approach/departure(°) 30/15
Tangjun Overall dimension (L*W*H)(mm) 7025x2285x3570
Chassis model ZB3160TPE3F
Engine model/power (HP) YC4D130-41/96
Emission standard Euro-III
Tyres/Brake 900-20/Air brake
Wheel base(mm) 3500
Angle of approach/departure(°) 20/16

Upper drum capacity Optional Chassis Brand Chassis Parameters
8m3, 9m3, 10m3,12m3 DFM-Dongfeng Overall dimension(L*W*H)(mm) 9320x2500x3990 9740x2500x3990
Chassis model DFL5251GJBA4
Engine model/power (HP) dCi350-40/350
Emission standard Euro IV
Kerb mass/Rated load mass(kg) 15800/9005, 9070
Wheel base(mm) 3650+1350 3800+1350 4000+2350
Angle of approach/departure(°) 30/15
SHACMAN Overall dimension(L*W*H)(mm) 9415x2500x3990 9875x2500x3990
Chassis model SX5256GJBDR404
Engine model/power (HP) WP10.336E40/336
Emission standard Euro IV
Kerb mass/Rated load mass(kg) 15390/9480, 9415
Wheel base(mm) 3775+1400 3975+1400
Angle of approach/departure(°) 20/16
AUMAN Overall dimension(L*W*H)(mm) 9970x2500x3990
Chassis model BJ5253GJB-XA
Engine model/power (HP) WP12.375E40/375
Emission standard Euro IV
Kerb mass/Rated load mass(kg) 16100/8705
Wheel base(mm) 4100+1350
Angle of approach/departure(°) 22/16
Upper drum capacity Optional Chassis Brand Chassis Parameters
12m3, 14m3, FAW-Jiefang Overall dimension(L*W*H)(mm) 9880x2500x3990 10390x2500x3990
Chassis model CA5250GJBP66K2L2T1E4
Engine model/power (HP) CA6DL2-35E4/350
Emission standard Euro IV
Kerb mass/Rated load mass(kg) 15960/8910, 8845
Wheel base(mm) 4050+1350 4300+1350
Angle of approach/departure(°) 23/16
SINOTRUK Overall dimension(L*W*H)(mm) 10650x2500x3990
Chassis model ZZ1257N434HD1
Engine model/power (HP) MC11.32-40/320
Emission standard Euro IV
Kerb mass/Rated load mass(kg) 16200/8670
Wheel base(mm) 4325+1350
Angle of approach/departure(°) 20/16
18m3, SINOTRUK Overall dimension(L*W*H)(mm) 11390x2500x3990
Chassis model ZZ1317N3667D1
Engine model/power (HP) D10.38-40/380
Emission standard Euro IV
Kerb mass/Rated load mass(kg) 17960/12910
Wheel base(mm) 1800+3600+1350 1800+3825+1350
Angle of approach/departure(°) 19/13
DFM-Dongfeng Overall dimension(L*W*H)(mm) 10910x2500x3990
Chassis model DFL5310GJBA1
Engine model/power (HP) dCi385-40/385
Emission standard Euro IV
Kerb mass/Rated load mass(kg) 17600/13270
Wheel base(mm) 1850+3400+1350
Angle of approach/departure(°) 25/15
Features of Transit mixer

1. Long service life
Wuhan steel, Baoshan steel material, different thickness for different parts, wear-rib on blades. Service life is 1.5 times than average.
2. Unique structure
Revised logarithmic spiral blades, special mold cold press molding, to ensure speed of concrete feeding and discharging, concrete mixing is more uniform; Blades and drum body by new welding process without obvious trance.
3. Excellent assembly and manufacturing processes
CNC cutting equipment, Automation Welding Machine, Industrial Fixtures, Automatic robot welding production line, to ensure products quality.
4. Paten technology
Mixing blades, anti-torque secondary beam, water tank heating device, etc.
5. Bus baking varnish
Fifteen thousand square meters workshop for painting, 16 process baking system, polyurethane finish coat, to keep mixing tank bright and long lasting.
6. High-level configuration of hydraulic system
Hydraulic system adopt international top-brand, such as Germany, Italian, American brand with integral structure, excellent performance
7. Control system for operator
Adopts three-point control mode, that means operator can control the drum easily and conveniently, by control-bar on both rear-sides and in-cab device.
8. More humanization design
Large power tail-lamp at rear part, for night working and safety.
Self-locking in cab, to prevent from mistake operation and ensure security.
Step area adopt pressed steel and attractive appearance, reasonable handrail ensuring safety.
Smart equipment can be assembled on the truck mixer to meeting various clients’ requirement, for example, Remote Operation, Water Metering, Tank-input Sealing, etc
9. Multi types of Chassis Matched
The upper mixing drum capacity is from 3m3 to 20m3 all volume products.
The model of chassis match: ISUZU/SINOTRUK/NISSAN/HINO/FOTON/DFM-Dongfeng/FAW-Jiefang/SHACMAN/Auman/JAC/North-BENZ, etc
