High-speed Railway Track Board Oscillator Equipment

High-speed Railway Track Board Oscillator Equipment is used in the high speed railway without residue, Plate (Japan Plate, Bjorn board, radar and so on).

We're here to help: Easy ways to get the answers you need

concrete mixer

JS Twin Shaft Concrete Mixer YJS Twin-shaft Concrete Mixer JZC/JZM Portable Concrete Mixer JZM Electrical Concrete Mixer JN Vertical Concrete Mixer

concrete batching plant

Bucket Concrete Batch Plant Belt Concrete Batching Plant Mobile Concrete Batching Plant Container Concrete Batch Plant HZS25 Concrete Batching Plant HZS35 Concrete Batching Plant HZS50 Concrete Batch Plant HZS60 Concrete Batching Plant HZS120 Concrete Batch Plant HZS180 Concrete Batching Plant

Self-loading concrete truck mixer

Concrete Truck Mixer DS2.5 Self-loading Concrete Mixer Truck DS1.5/1.5F Self Loading Concrete Mixer Truck

concrete pump

JBT/DJBT Concrete Mixer Pump HBT Motor Concrete Trailer Pump DHBT Diesel Concrete Trailer Pump Concrete Boom Pump

concrete plant optional parts

Cement Silo Screw Conveyor PLD Aggregate Batching Machine Electric Control System

concrete vibrator

Electric Poker Concrete Vibrator Diesel Engine Poker Concrete Vibrator Pneumatic Motor Poker Vibrator High-speed Railway Track Board Oscillator Equipment

Product Information
parameters introduction
Product Details

Brief Introduction of High-speed Railway Track Board Oscillator Equipment
High-speed Railway Track Board Oscillator Equipment is used in the high speed railway without residue, Plate (Japan Plate, Bjorn board, radar and so on). The manufacture of the large concrete prefabricated components, such as the construction of the road, railway, bridge, tunnel concrete, it can also be used in the construction of T simply supported beam, I-beam and so on.

Features of High-speed Railway Track Board Oscillator Equipment
It features high exciting force, adjustable frequency; proper amplitude, light weight, easy to use, high efficiency, and good effect to component-compacting concrete. This product awarded Science and Technology achievement award, and applied for national patent.

Please fill in your procurement needs and contact information

Type	In put (Ph./Hz/V)	Power (Kw)	Freq. (Hz)	Amplitude (mm)	Exciting ;force (KN)	Weight (kg)

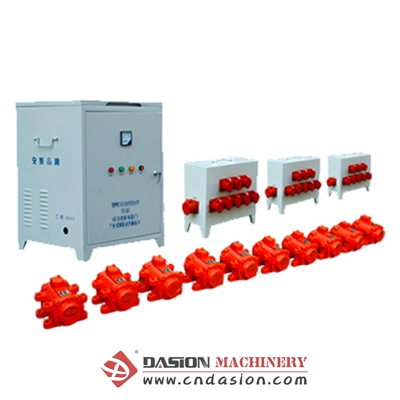

GZ150	3/250/150	1.5	150	0.8	12	22

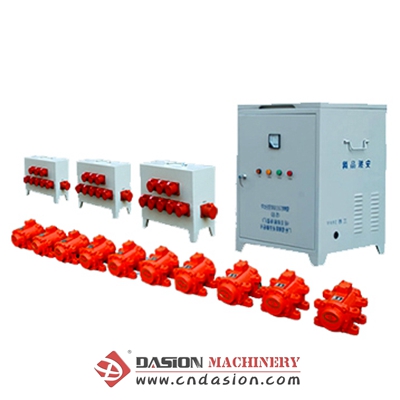

GZ100	3/380/80-120	2	80-120	1.0-1.5	8-18	29

Type	Power (Kw)	In put (Ph./Hz/V)	Out ;put (Ph./Hz/V)	Remarks
DBP150-22	22KW	3/380/50	3/250/150	27 Road preset control
DBP100-22	22KW	3/380/50	3/380/80-120	Multiple preset control
