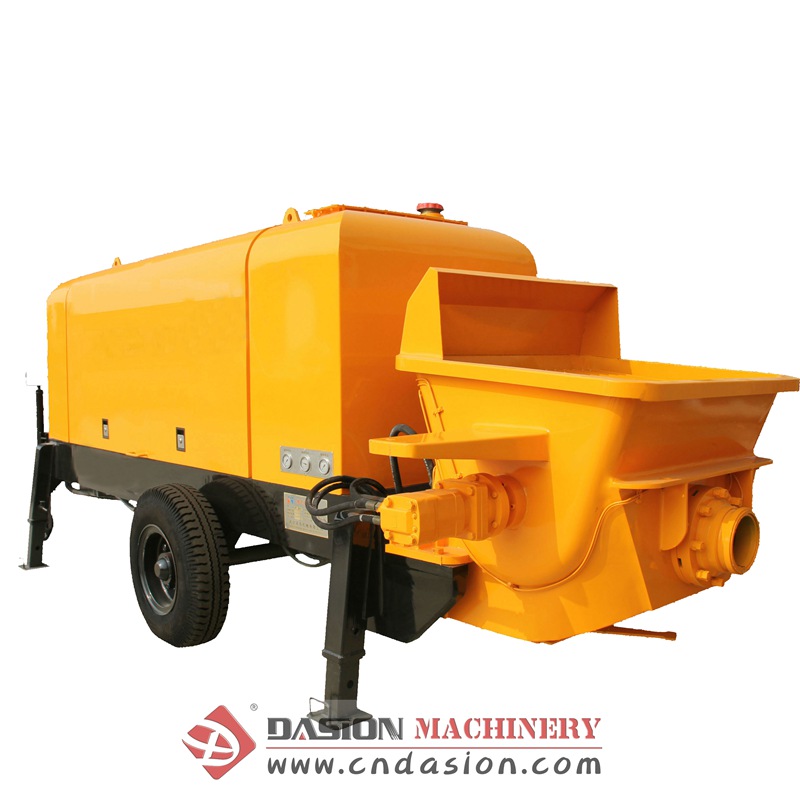

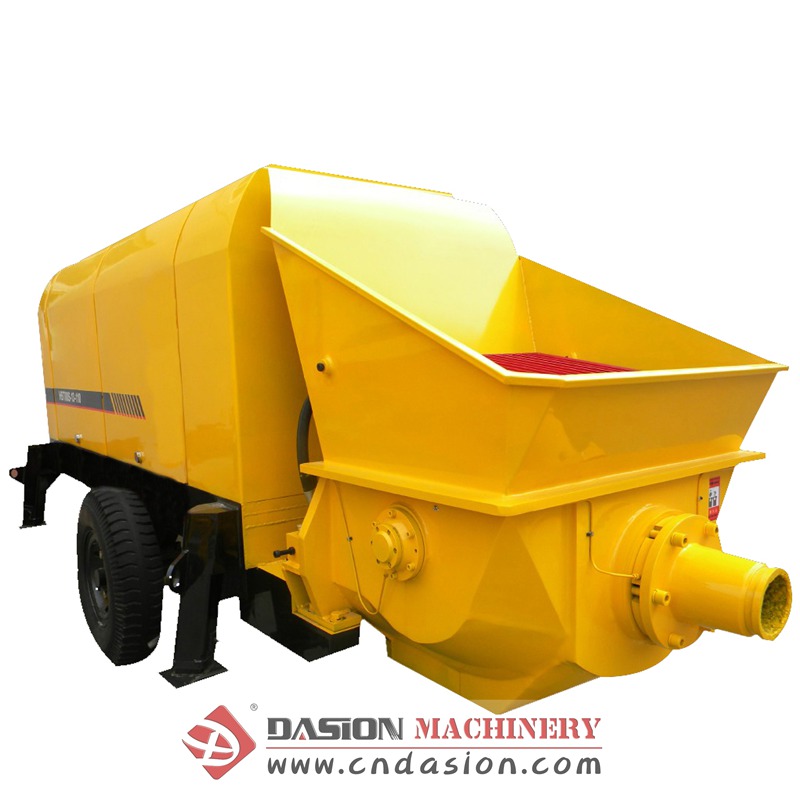

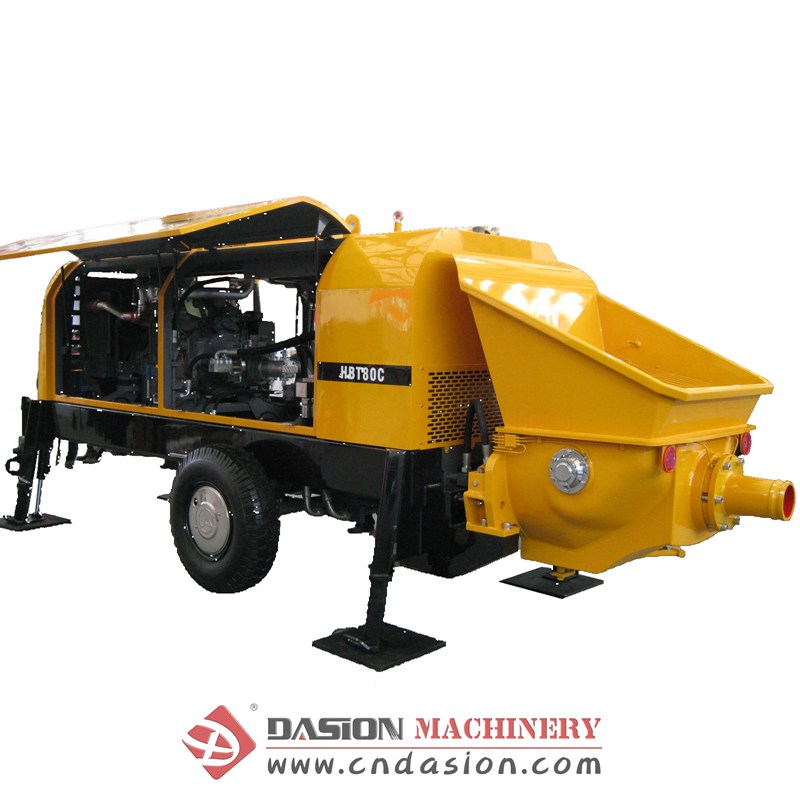

HBT Motor Concrete Trailer Pump

Feeding height: 1400mm
Theoretical max. discharging volume: 40-80m³/h
Theoretical max. delivery pressure: 10-15.7Mpa
Theoretical max. delivery distance(Vertical): 120-250m
Theoretical max. delivery distance(Horizontal): 300-1000
Max. mixing speed: 24-30r/min

HBT Concrete Trailer Pumps are concrete transport machines, which are widely used for the construction works in city construction, bridge construction, electric power and other energy source facilities and so on.

We're here to help: Easy ways to get the answers you need

concrete mixer

JS Twin Shaft Concrete Mixer YJS Twin-shaft Concrete Mixer JZC/JZM Portable Concrete Mixer JZM Electrical Concrete Mixer JN Vertical Concrete Mixer

concrete batching plant

Bucket Concrete Batch Plant Belt Concrete Batching Plant Mobile Concrete Batching Plant Container Concrete Batch Plant HZS25 Concrete Batching Plant HZS35 Concrete Batching Plant HZS50 Concrete Batch Plant HZS60 Concrete Batching Plant HZS120 Concrete Batch Plant HZS180 Concrete Batching Plant

Self-loading concrete truck mixer

DS0.5F Self Loading Concrete Mixer DS1.0F Self-loading Concrete Mixer DS1.5 Self Loading Concrete Mixer DS2.0 Self Loading Concrete Mixer DS4.0 Self Loading Concrete Mixer Concrete Truck Mixer

concrete pump

JBT/DJBT Concrete Mixer Pump HBT Motor Concrete Trailer Pump DHBT Diesel Concrete Trailer Pump Concrete Boom Pump

concrete plant optional parts

Cement Silo Screw Conveyor PLD Aggregate Batching Machine Electric Control System

concrete vibrator

MV Electrical Motor Vibrator ZF/ZW External Concrete Vibrator ZN Inserted Concrete Vibrator

Product Information
parameters introduction
Product Details

Brief Introduction Of HBT Motor Drive Concrete Trailer Pump

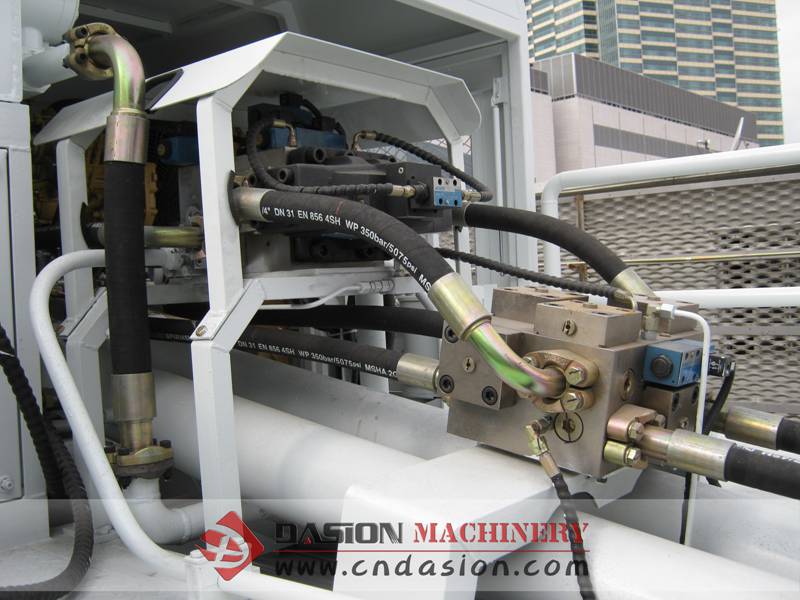

HBT Concrete Trailer Pumps are concrete transport machines, which are widely used for the construction works in city construction, bridge construction, electric power and other energy source facilities and so on. The machines adopt world-level advanced technologies such as open hydraulic loop, distributing valve auto-compensation clearance, constant power control, all-hydraulic automatic reverse and electric proportional control. DASION has carried out in-depth and meticulous studies and experiments in many aspects like the self-lubrication of concrete pistons, which can fully meet the various needs of all customers. All trailer pumps are assembled through streamlined production. DASION strictly controls all the machining processes and the assembly quality, giving final test to every trailer pump through simulated working conditions and overload experiments to ensure zero-fault in customers’ first operation.

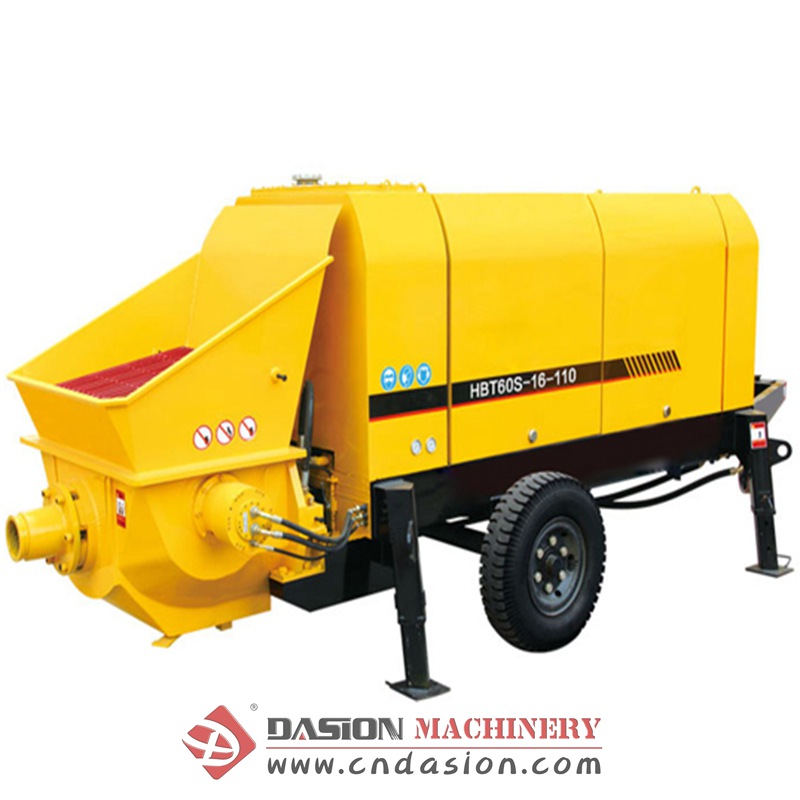

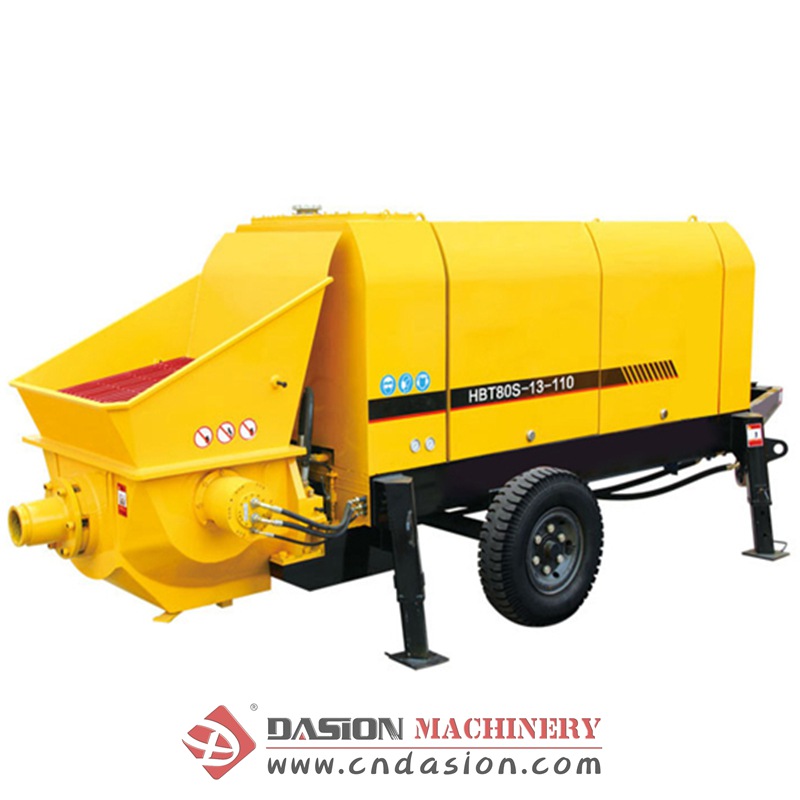

Item		Unit	HBT40S-10-45	HBT50S-12-55	HBT60S-13-90	HBT60S-16-110	HBT80S-13-110	HBT80S-16-132
Theoretical max. discharging volume		m³/h	40	50	60	60	80	80
Theoretical max. delivery pressure		Mpa	10	12	12.5	15.7	12.5	15.7
Theoretical max. delivery distance	Vertical	m	120	150	180	250	180	250
Theoretical max. delivery distance	Horizontal	m	300	350	700	1000	700	1000
Oil tank capacity		L	300	300	420	420	420	420

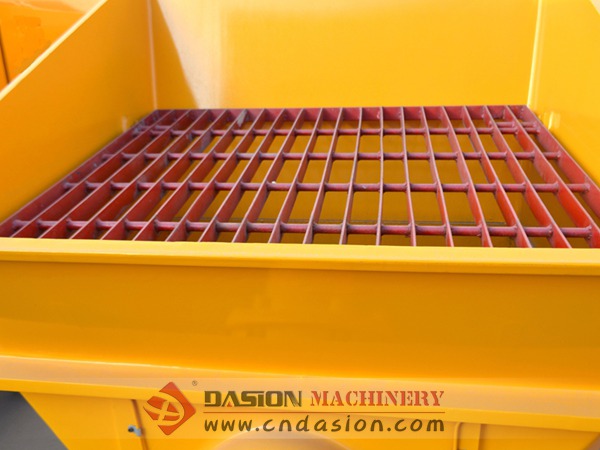

Hopper capacity		L	600	600	600	600	600	600
Feeding height		mm	1400	1400	1400	1400	1400	1400

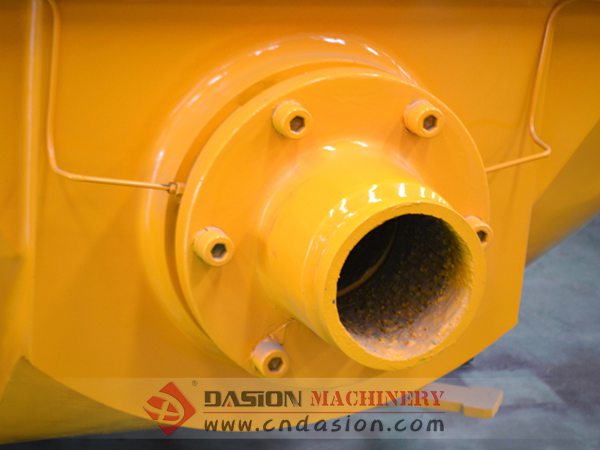

Outlet opening diameter		mm	Φ125	Φ150	Φ150	Φ150	Φ150	Φ150

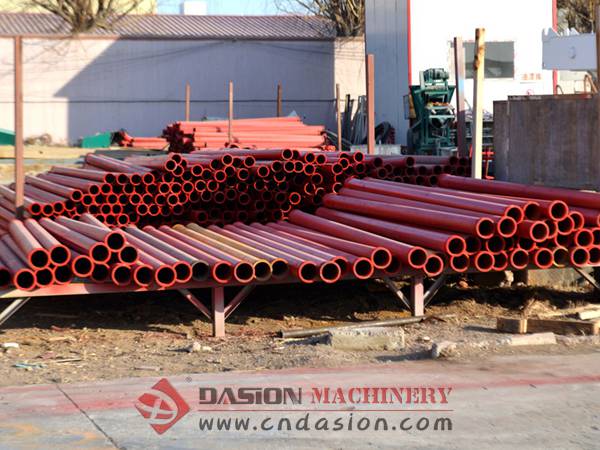

Inner dia. of delivery pipe		mm	Φ125	Φ125	Φ125	Φ125	Φ125	Φ125

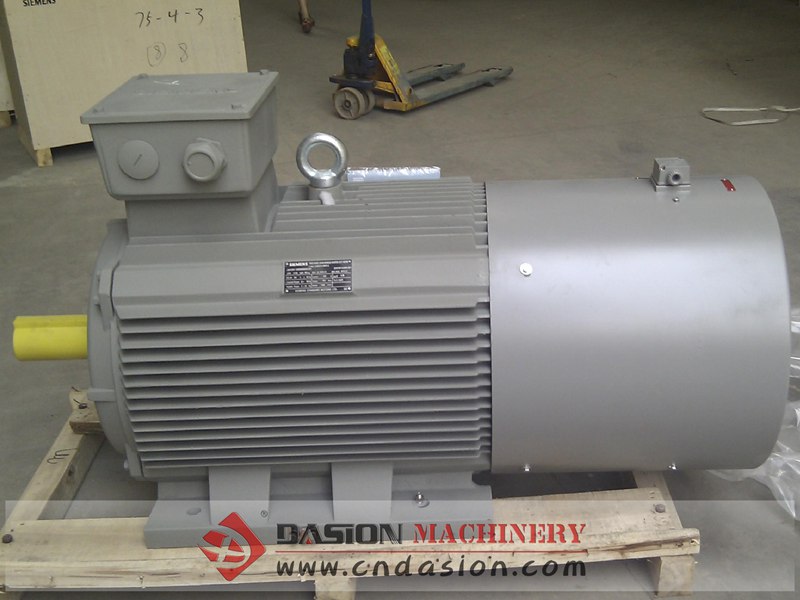

Main motor power		Kw	45	55	90	110	110	132
Rated voltage		V	380	380	380	380	380	380
Rated speed		r/min	1480	1480	1480	1480	1480	1480
Max. mixing speed		r/min	30	24	24	24	24	24
Overall weight		Kg	3200	3500	5100	5200	5200	5500
Pulling speed		Km/h	≤8	≤8	≤8	≤8	≤8	≤8
