PLD Aggregate Batching Machine

PLD series aggregate batching machine is ingredient machinery, which applies to construction sites, roads, bridges and other projects.

We're here to help: Easy ways to get the answers you need

concrete mixer

JS Twin Shaft Concrete Mixer YJS Twin-shaft Concrete Mixer JZC/JZM Portable Concrete Mixer JZM Electrical Concrete Mixer JN Vertical Concrete Mixer

concrete batching plant

Bucket Concrete Batch Plant Belt Concrete Batching Plant Mobile Concrete Batching Plant Container Concrete Batch Plant HZS25 Concrete Batching Plant HZS35 Concrete Batching Plant HZS50 Concrete Batch Plant HZS60 Concrete Batching Plant HZS120 Concrete Batch Plant HZS180 Concrete Batching Plant

Self-loading concrete truck mixer

DS0.5F Self Loading Concrete Mixer DS1.0F Self-loading Concrete Mixer DS1.5 Self Loading Concrete Mixer DS2.0 Self Loading Concrete Mixer DS4.0 Self Loading Concrete Mixer Concrete Truck Mixer

concrete pump

JBT/DJBT Concrete Mixer Pump HBT Motor Concrete Trailer Pump DHBT Diesel Concrete Trailer Pump Concrete Boom Pump

concrete plant optional parts

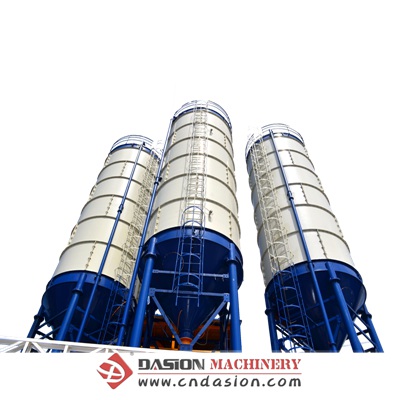

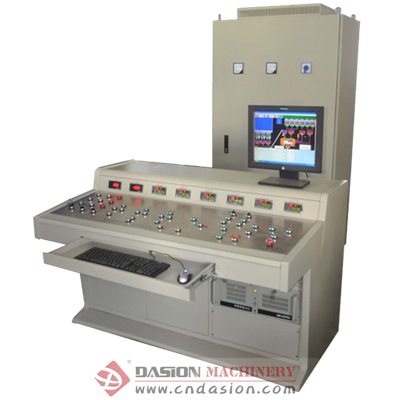

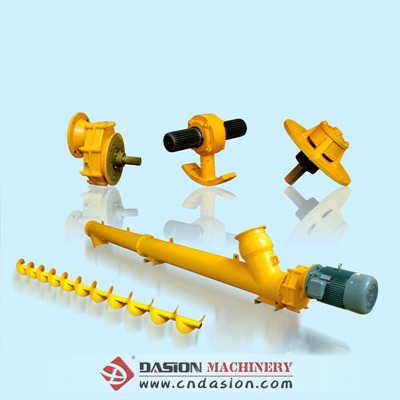

Cement Silo Screw Conveyor PLD Aggregate Batching Machine Electric Control System

concrete vibrator

MV Electrical Motor Vibrator ZF/ZW External Concrete Vibrator ZN Inserted Concrete Vibrator

Product Information
parameters introduction
Product Details

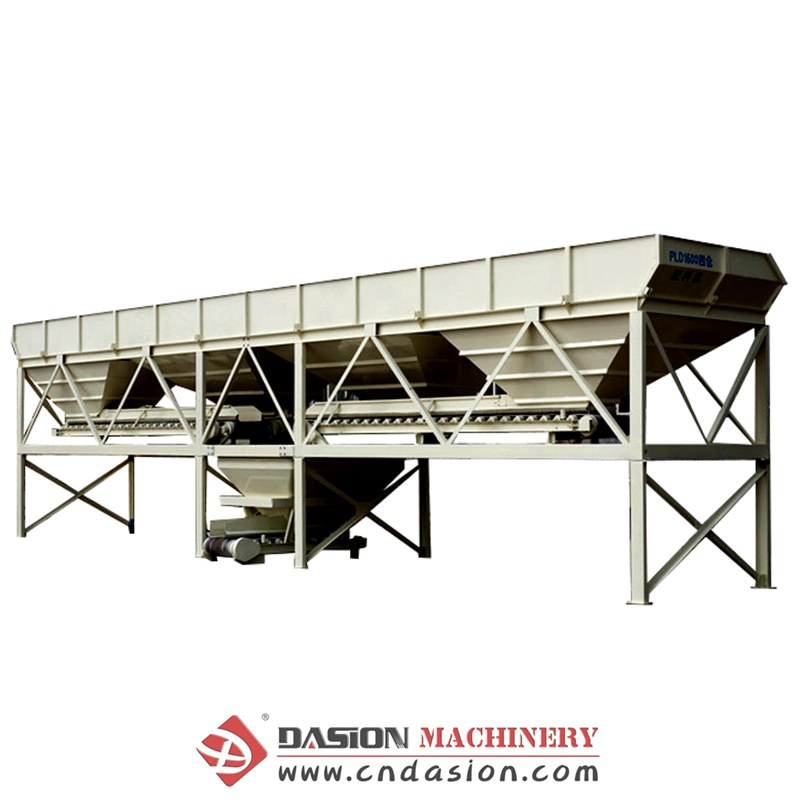

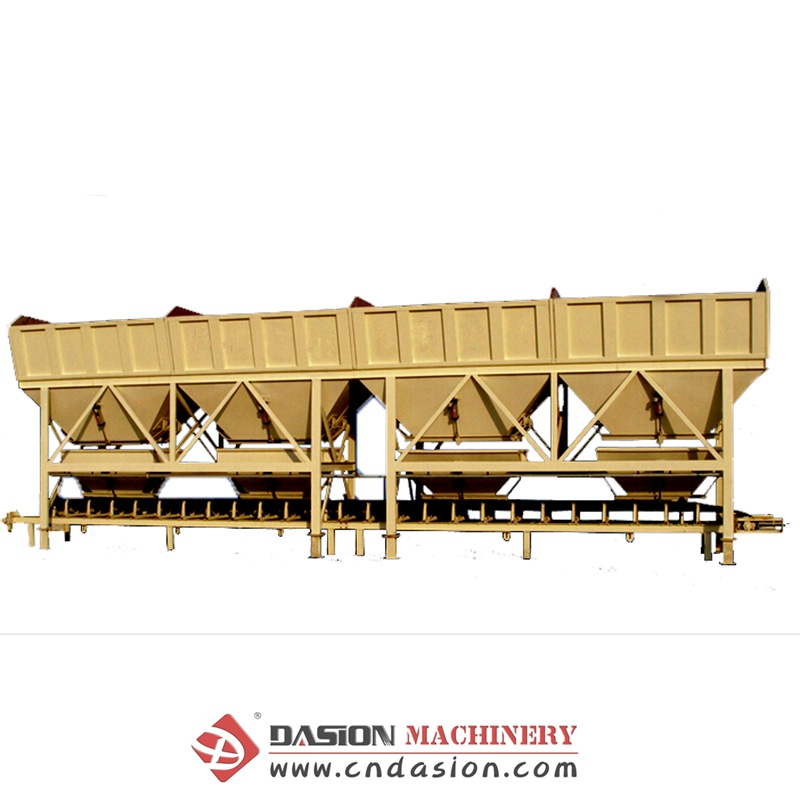

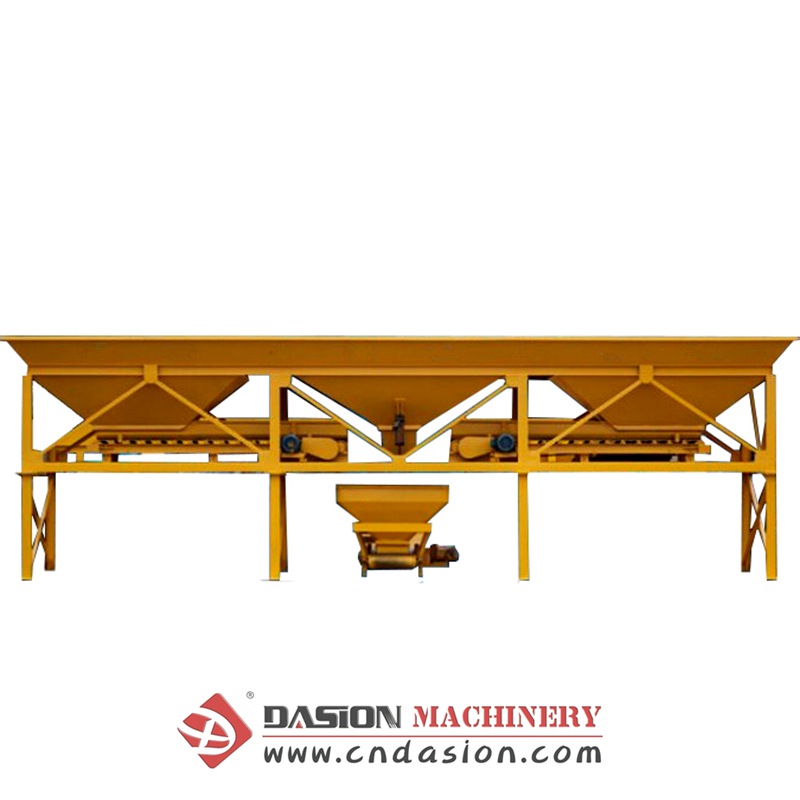

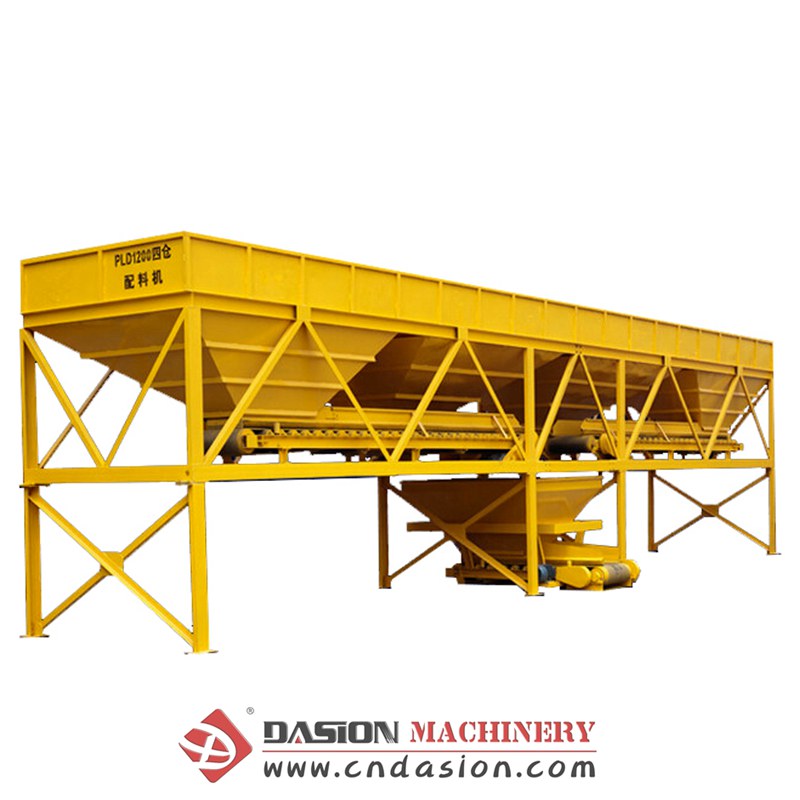

Brief Description of PLD Aggregate Batching Machine
PLD series aggregate batching machine is ingredient machinery, which applies to construction sites, roads, bridges and other projects. They can work with concrete mixers which discharging volume is below 6000L. The scaled aggregate can be fed directly into the concrete mixer by lifting hopper or conveyor belt.
Aggregate batching machine weighing system uses weight control devices and sensors, can be quantified materials, ingredients and control, and automatically modify the gap.

Main classification of PLD Aggregate Batching Machine
1. According to material quantity: 2 bins, 3 bins, 4 bins
2. According to measurement type: Various material by cumulative measurement, Each material by independent measurement
3. According to discharging method: Electrical conveyor belt, Pneumatic air cylinder

Please fill in your procurement needs and contact information

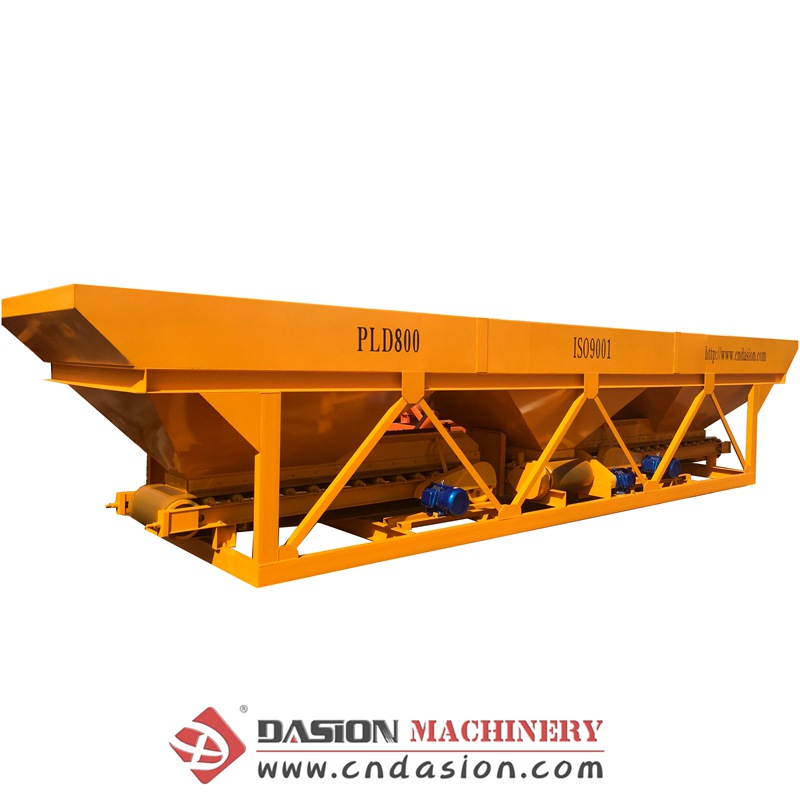

Item parameters model	PLD800	PLD1200	PLD1600	PLD2400	PLD3200	PLD4800
Weighing bucket capacity	800L	1200L	1600L	2400L	3200L	4800L
Hopper capacity	2*1.2m3	3*2.5m3	3*3m3	3*12m3	3*20m3	4*25m3
Production rate	48m3/h(dry material）	56m3/h(dry material）	75m3/h(dry material）	120m3/h(dry material）	160m3/h	280m3/h
Batching accuracy	±2%	±2%	±2%	±2%	±2%	±2%
Maximum weighing value	2000kg	3000kg	3000kg	4000kg	5000kg	8000kg
Ingredients species	2-3	2-4	2-4	2-4	2-4	2-4
Feeding height	2400mm	2900mm	2900mm	4250mm	4500mm	2300mm
Feeder belt speed	1m/s	1m/s	1m/s	1.6m/s	1.6m/s	1.25m/s
power	3×3=9kw	4×3=12kw	3×4=12kw	7.5kw	11kw	18.5kw
Total weight	2450kg	4500kg	5600kg	8500kg	10200kg	14000kg
