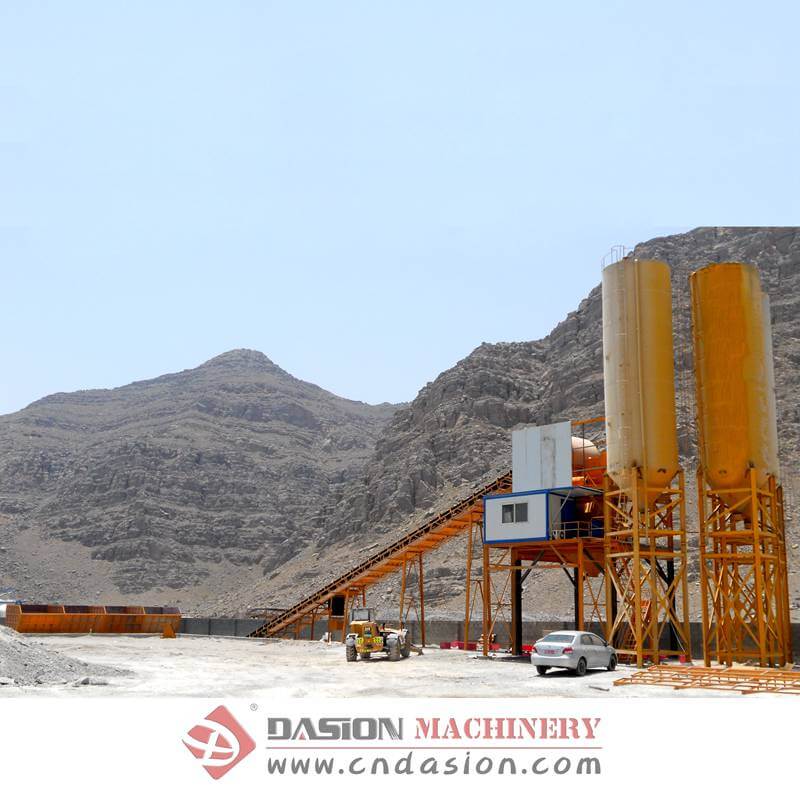

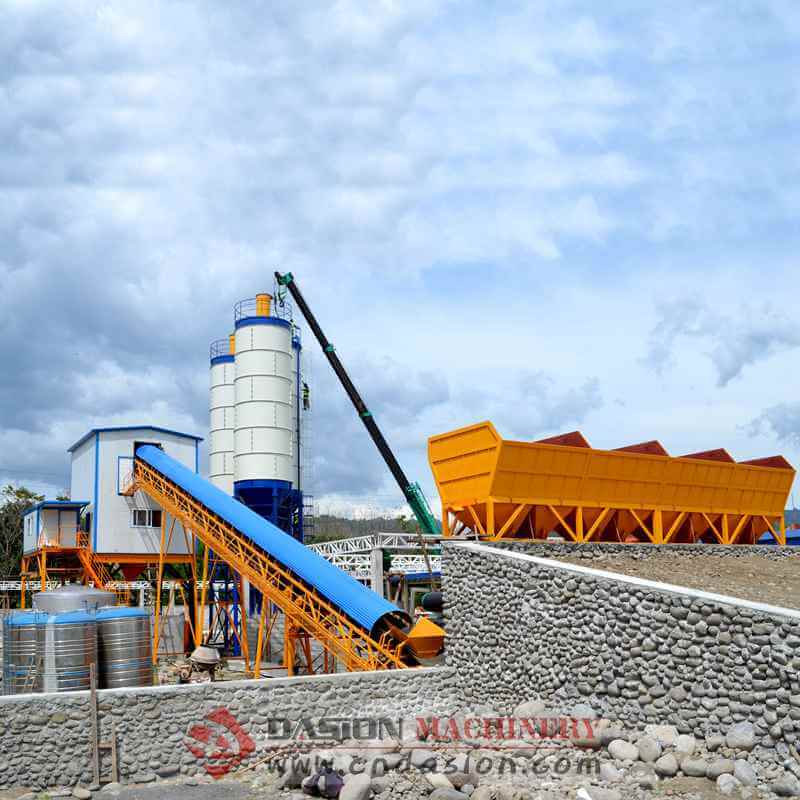

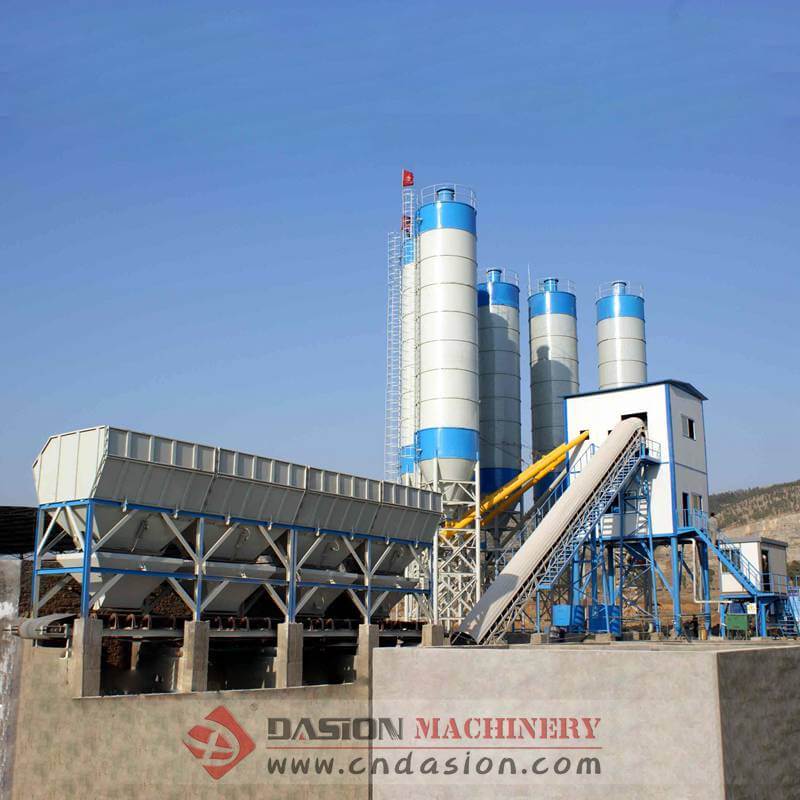

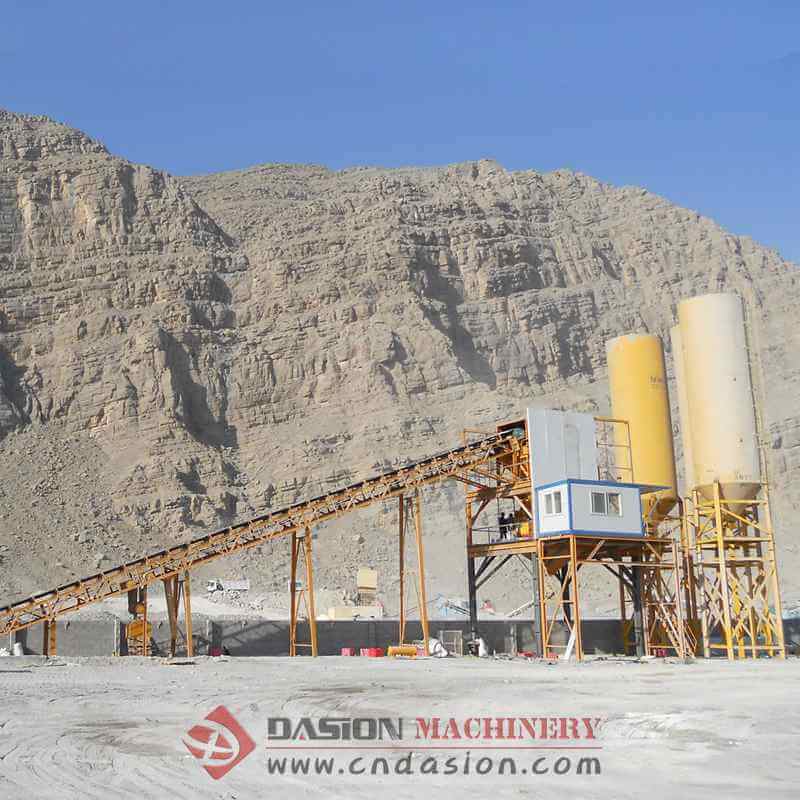

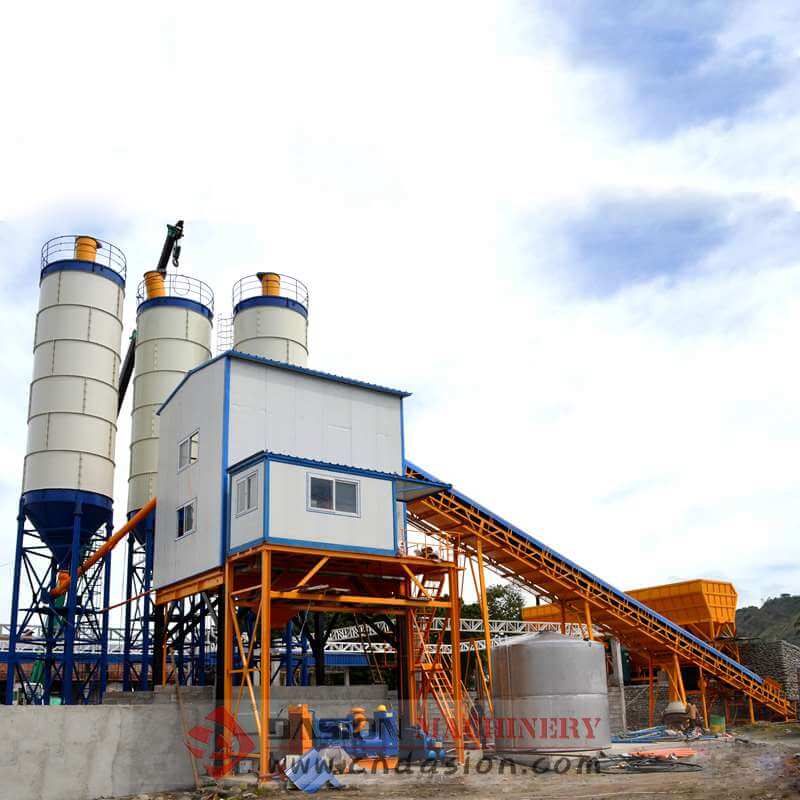

DASION HZS120 concrete batching plant (120m3/h) consists of material batching, mixing and electric control system. DASION assemble high performance separated control room, which includes control panel, power cabinet, air conditioner, Printer, etc. That will make the plant operation easily, safe and speedy, but also produce high quality concrete because of more accurate material measurement.
DASION concrete batching plant is widely used in big and medium construction projects, road, bridge project, and concrete prefabrication factory.
Parameters Of Concrete Batch Plants
Twin-shaft concrete mixer
Erection & commissioning, operator training
12 months after erection
YJS 2000/ SICOMA 2000
Aggregate batching machine
Water, Cement, Fly-ash, Additive
Air compressor, etc
Control system Type
Computer auto-control module with PLC
Control panel board
Buttons, lamps, indicators, CCTV, etc.
China CHINT, German SCHNEIDER (option)
With Air conditioner, ≈10m2
Foundation layout, Electrical diagram, Operation manual, Spare parts list
Working Principle Of Concrete Batching Plants
Concrete batch plant has 4 main parts: Material feeding, Material measurement, Concrete mixing and whole plant control system.
The working procedure of automatic control system is
1. Turn on control software, login to operation interface;
2. Set or access working parameters of concrete production, such as recipe number, concrete grade, slump, total production volume, etc.
3. Start production;
4. The software/PLC will give signal to each part of the plant, to finish the material feeding, measurement, loading into the concrete mixer, mixing and discharging;
5. If there are some problems during production, the software will detect the error and light up alarm lamp on computer screen or indicator display, so that the operator can stop the production till problems solved.
6. Regarding to the material feeding, the various of electric motors, butterfly valves and load cells will work automatically according to digital signal;
7. High-pressure air system will provide enough driving force for each unloading gates, such as aggregate bins, butterfly valve of scale hoppers, concrete mixer discharging gate, etc.
8. The software will control the whole system continuously produce concrete till the set-volume finished production, unless emergency stop or turn to Manual style.
