DS1.5 Self Loading Concrete Mixer

Net weight: 5500kg
Brake: Air brake
Cooling type: Water Cooling
Drum full capacity: 2.2cbm
Loader bucket capacity: 0.4cbm
Overall size: 6180*2270*2626mm

DS1.5 self loading concrete mixer truck is an on-site construction vehicle that combine features with concrete batch processing equipment, concrete transport and concrete mixing station.

We're here to help: Easy ways to get the answers you need

concrete mixer

JS Twin Shaft Concrete Mixer YJS Twin-shaft Concrete Mixer JZC/JZM Portable Concrete Mixer JZM Electrical Concrete Mixer JN Vertical Concrete Mixer

concrete batching plant

Bucket Concrete Batch Plant Belt Concrete Batching Plant Mobile Concrete Batching Plant Container Concrete Batch Plant HZS25 Concrete Batching Plant HZS35 Concrete Batching Plant HZS50 Concrete Batch Plant HZS60 Concrete Batching Plant HZS120 Concrete Batch Plant HZS180 Concrete Batching Plant

Self-loading concrete truck mixer

DS0.5F Self Loading Concrete Mixer DS1.0F Self-loading Concrete Mixer DS1.5 Self Loading Concrete Mixer DS2.0 Self Loading Concrete Mixer DS4.0 Self Loading Concrete Mixer Concrete Truck Mixer

concrete pump

JBT/DJBT Concrete Mixer Pump HBT Motor Concrete Trailer Pump DHBT Diesel Concrete Trailer Pump Concrete Boom Pump

concrete plant optional parts

Cement Silo Screw Conveyor PLD Aggregate Batching Machine Electric Control System

concrete vibrator

MV Electrical Motor Vibrator ZF/ZW External Concrete Vibrator ZN Inserted Concrete Vibrator

Product Information
parameters introduction
Product Details

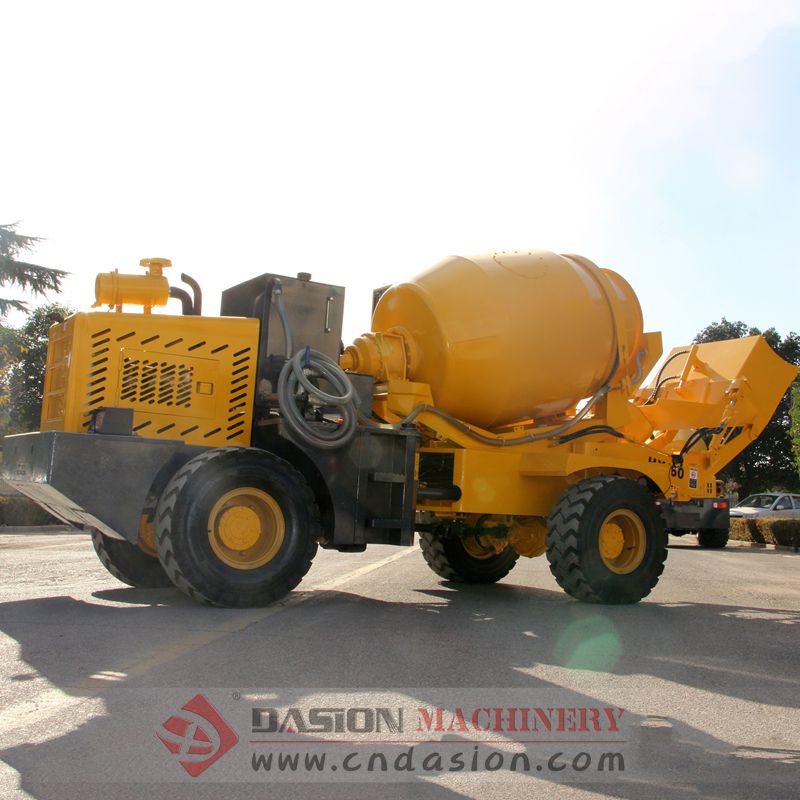

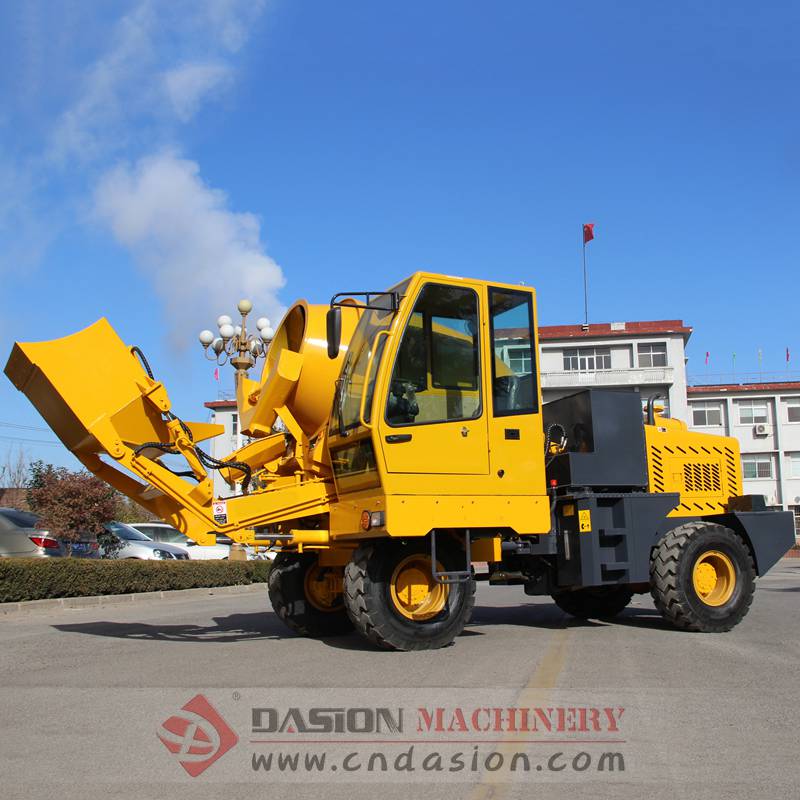

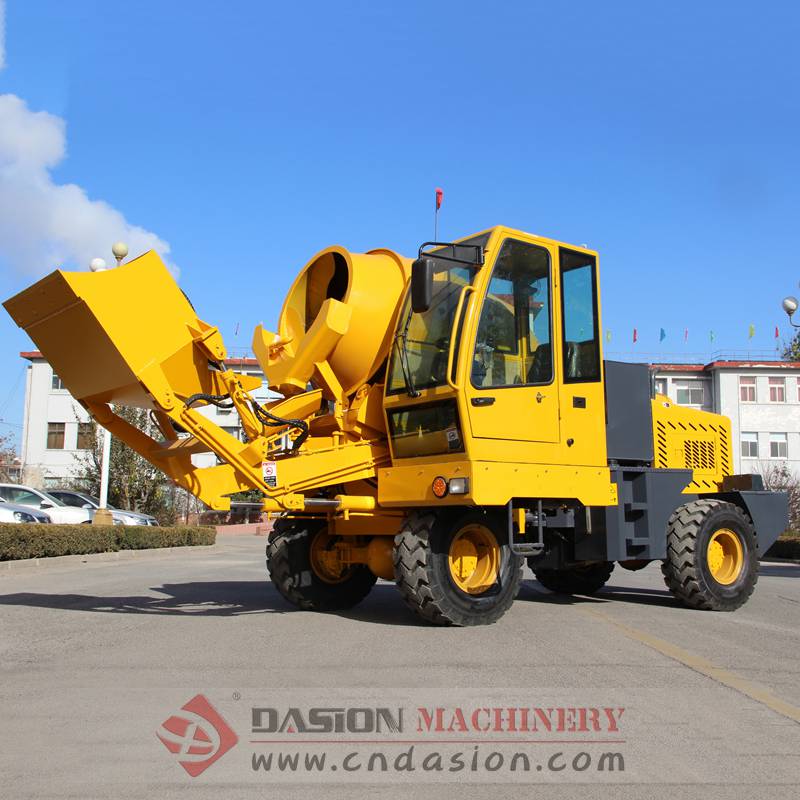

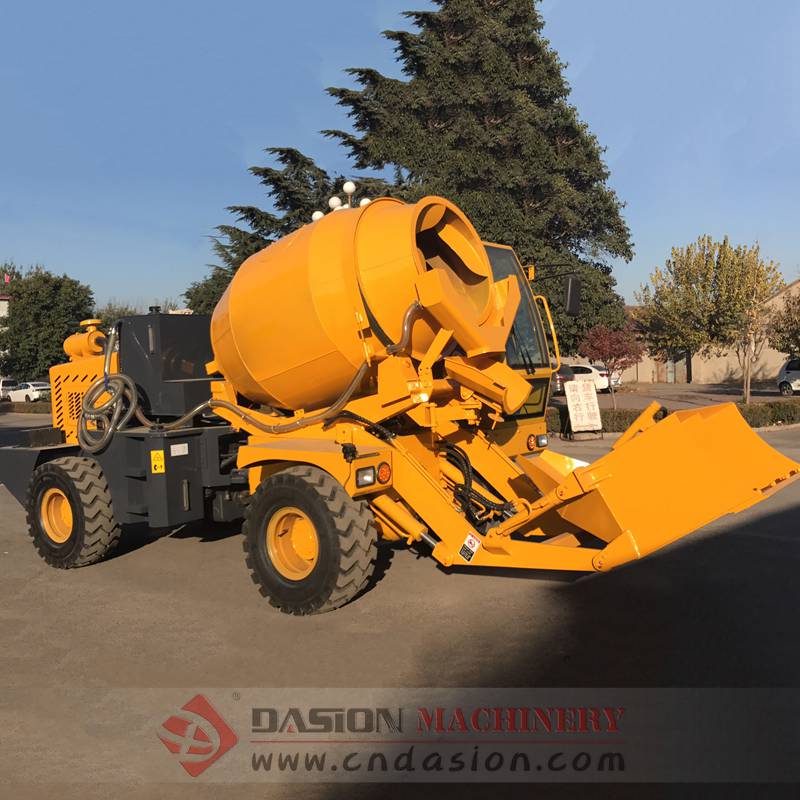

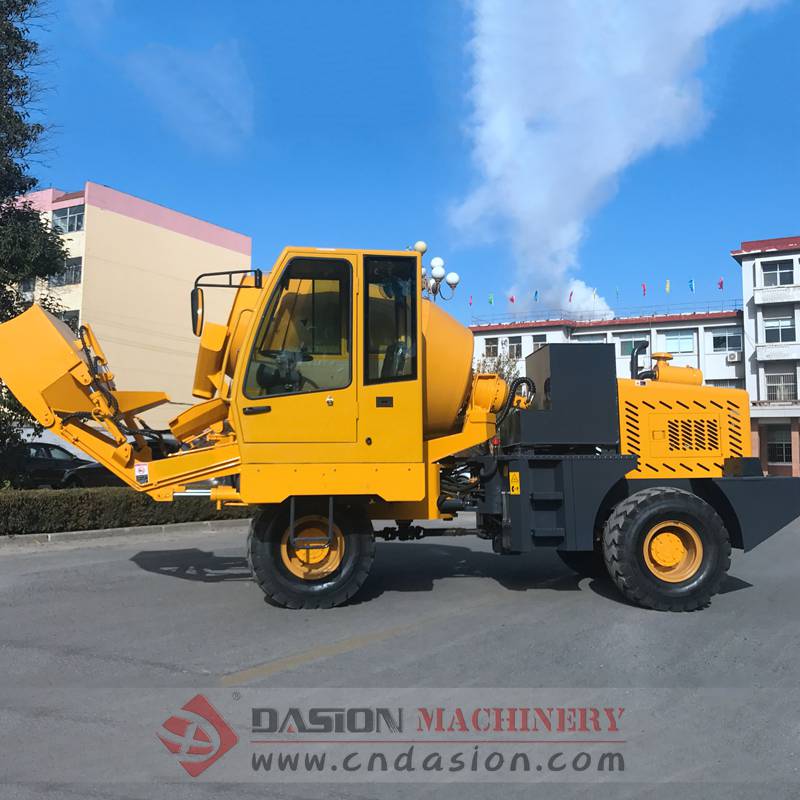

Brief Introduction of DS1.5 Self Loading Concrete Mixer Truck

DS1.5 self loading concrete mixer truck is an on-site construction vehicle that combine features with concrete batch processing equipment, concrete transport and concrete mixing station.
Self loading concrete mixer combines the features of self-loading, weighing, mixing and discharging. It can maximize and improve the job efficiency and reduce the production cost and time.

Please fill in your procurement needs and contact information

Name	Item	Spec
Overall machine	Net weight	5500kg
	Overall size	618022702626mm(3434mm)
	Transmission	Full Hydraulic
		4WD
	Brake	Air brake
	Chassis	Off-road
	Tread	1600mm
	Wheelbase	2500mm
	Loader bucket	Capacity	0.4cbm
		Control	Hydraulic
	Tilt Angle	30%
	Speed	High speed	0-25KM/H
		Low speed	0-9KM/H
	Tyre Model	20.5/70-16 steel tyre
Engine	Type	Yunnei	4102
	Rated Power/RPM	60KW
	Cylinder	4
	Starter	Electric
	Cooling type	Water Cooling
Mixing Drum	Drum full capacity	2.2cbm
	Drum work capacity	1.6cbm
	Bank angle	16°
Chute	Swing Angle	≥60°
	Angle control	Hydraulic
	Size	100CM
