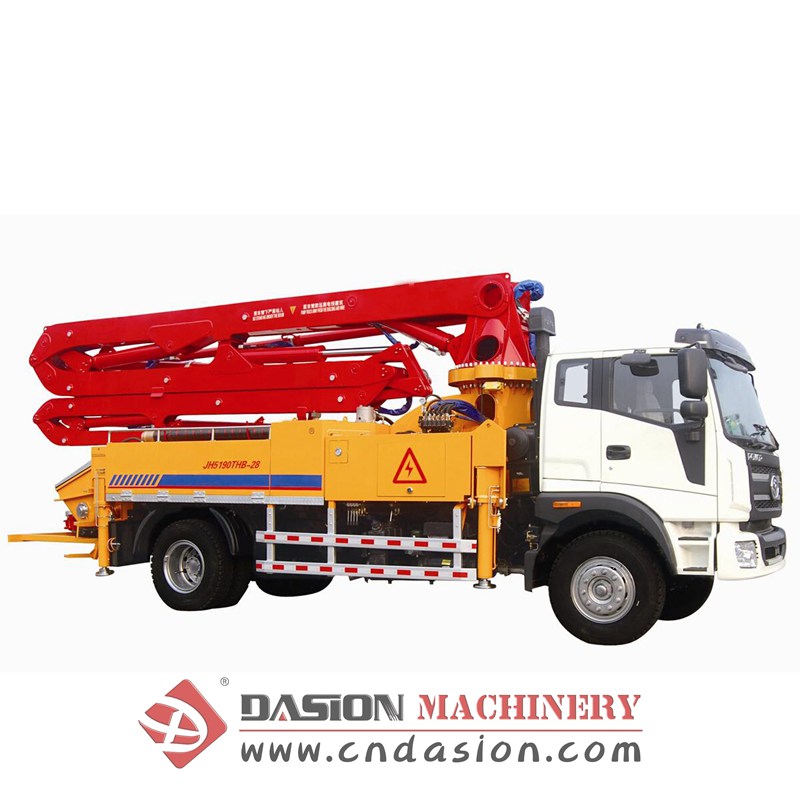

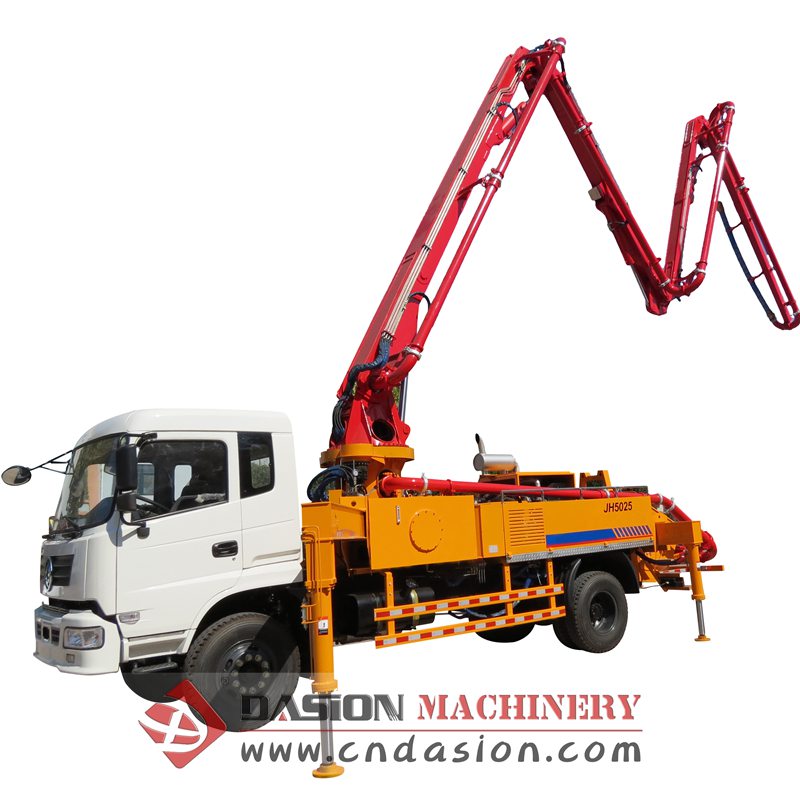

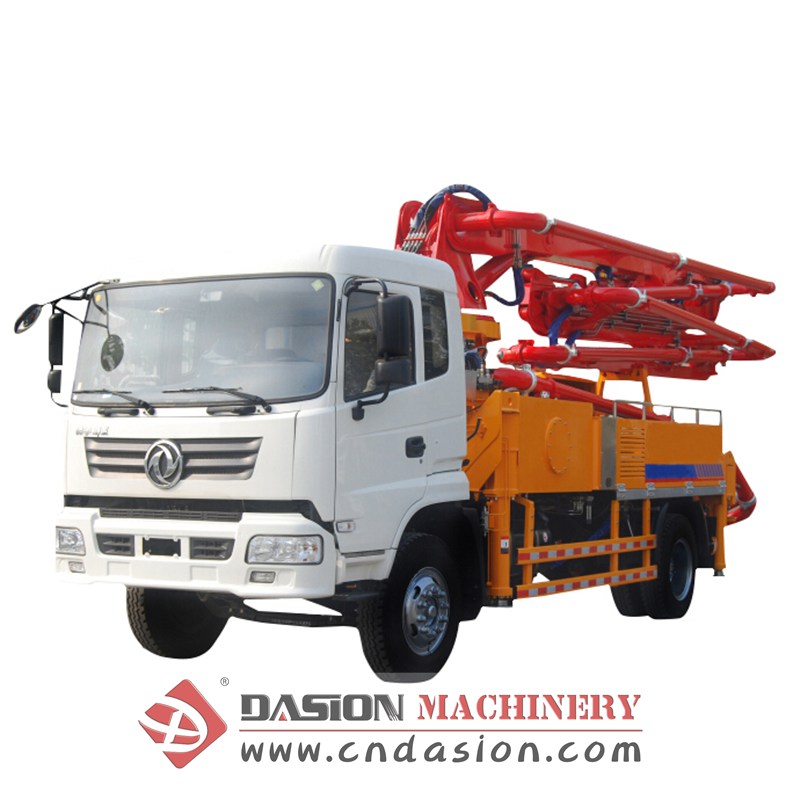

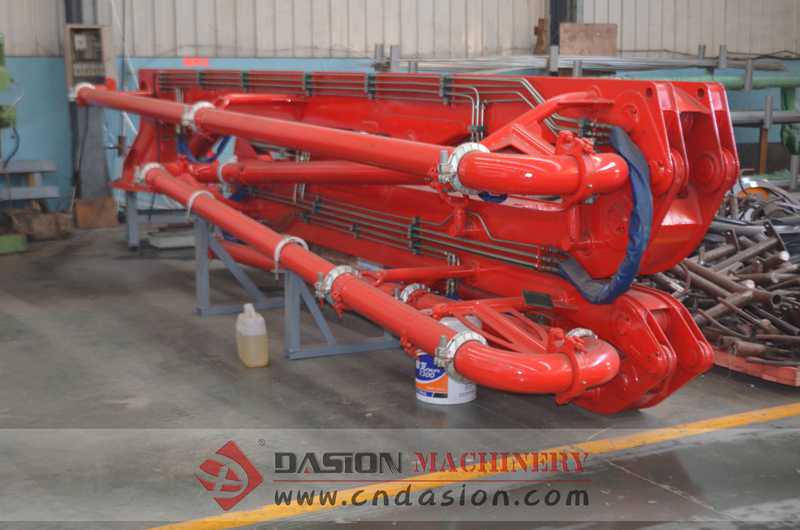

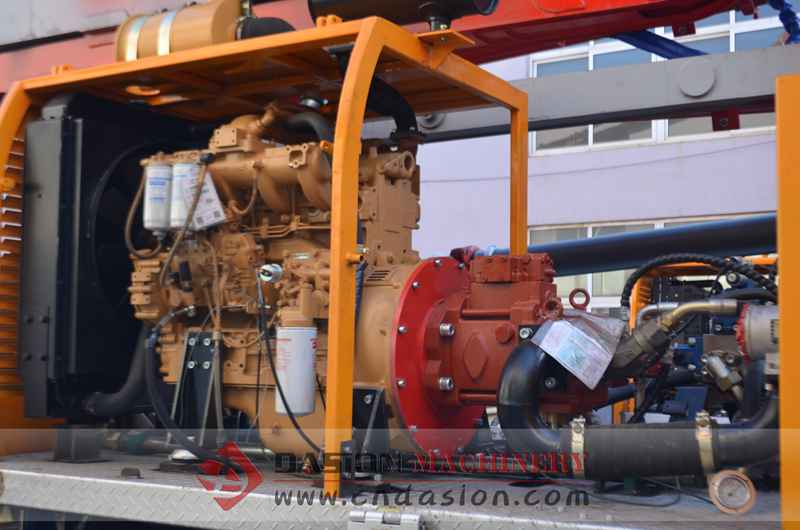

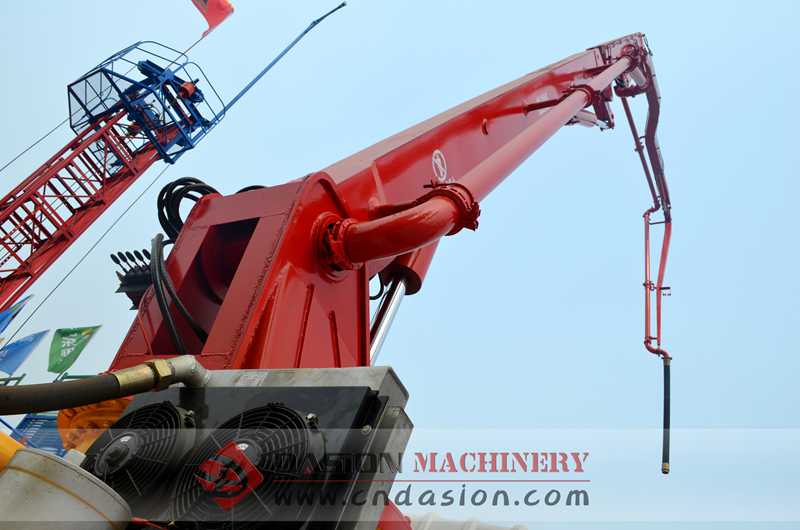

Concrete Boom Pump

  • Max. placing height: 27.4m/32.5m/37.6m
  • Max. placing length: 23.9m/29m/33.7m
  • Max. placing depth: 13.5m/18.3m/23.5m
  • Max. Output: 60m³/h / 80m³/h / 150m³/h
  • Total weight of vehicle: 20t / 21t /32t
  • Overall dimension of vehicle (L*W*H): 10000×2350×3650 / 10500×2350×3650 / 11200×2500×3900 (mm)

DS51/52 series concrete boom pumps are popular small model researched and developed by our company after our HBT series trailer-mounted concrete pumps, HBC series truck-mounted concrete pumps and HGY series hydraulic concrete placing booms.

We're here to help: Easy ways to get the answers you need

  • Product Information
  • parameters introduction
  • Product Details

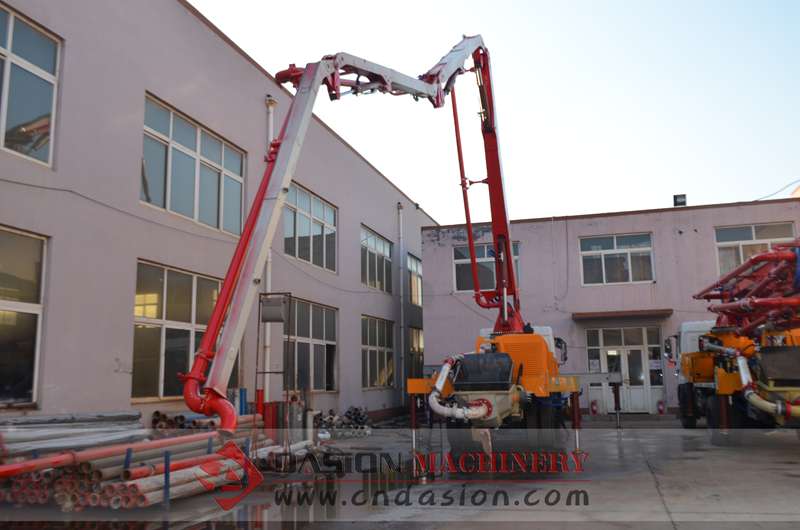

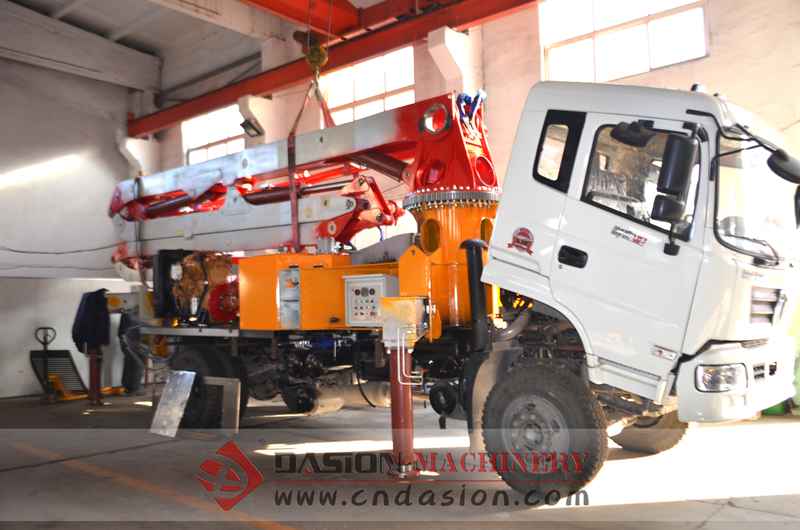

Brief Introduction of Concrete Boom Pump

DS51/52 series concrete boom pumps are popular small model researched and developed by our company after our HBT series trailer-mounted concrete pumps, HBC series truck-mounted concrete pumps and HGY series hydraulic concrete placing booms. They are the top-choice concrete equipment, which are widely used in tunnel, airport, seaport, high-speed rail site, beam field, bridge construction projects and so on.



Parameters of Concrete Boom Pump

Model Units DS5916THB28 DS5916THB33 DS5280THB37
Max. placing height m 27.4 32.5 37.6
Max. placing length m 23.9 29 33.7
Max. placing depth m 13.5 18.3 23.5
Control mode of boom   Electric proportion
Folding type of boom   M type RZ type RZ type
Arms section quantity section 4 5 5
Arm foldable angle ° 90/180/234/215 90/180/180/230/220 90/180/180/235/235
Rotating angle of turret ° ±270 ±270 ±270
Span distance of front landing leg mm 5760 5790 6250
Span distance of rear landing leg mm 5615 6760 7490
Longitudinal distance between front and rear landing leg mm 6950 5870 6945
Opening mode of landing leg   X type X type X-R type
Concrete cylinder diameter mm 125 125 125
Length of end hose mm 3000 3000 3000
Slump of pumped concrete   160-220 160-220 80-220
Pumping frequency (High/Low pressure) times/min. 23 28 24
Hopper capacity m3 0.65 0.65 0.65
Feeding height mm 1450 1450 1450
Max. Output m³/h 60 80 150
Max. outlet pressure (High/Low pressure) Mpa 13/7.6 12/8 10.5/8.2
Rated working pressure Mpa 32 32 31.5
Oil cylinder diameter mm 200 230 230
Type of hydraulic system   OPEN type
Hydraulic oil hopper capacity L 550 550 420
Chassis brand   DONGFENG DONGFENG FAW
Chassis model   EQ5200GSZ5DJ EQ5200GSZ5DJ WP10.350E53
Wheelbase mm 5200, 4X2 5200, 4X2 4600+1350, 6X4
Power of engine HP 220 220 350
Emission standard   EURO V EURO V EURO V
Total weight of vehicle T 20 21 32
Overall dimension of vehicle (L*W*H) mm 10000×2350×3650 10500×2350×3650 11200×2500×3900




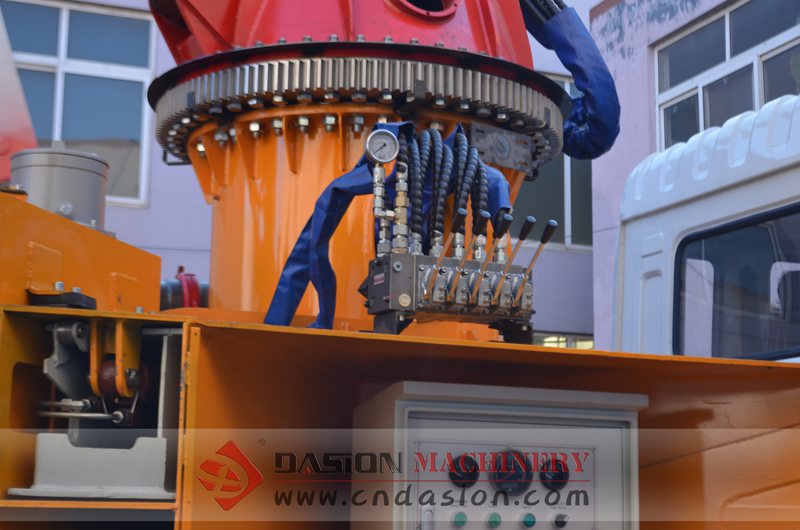

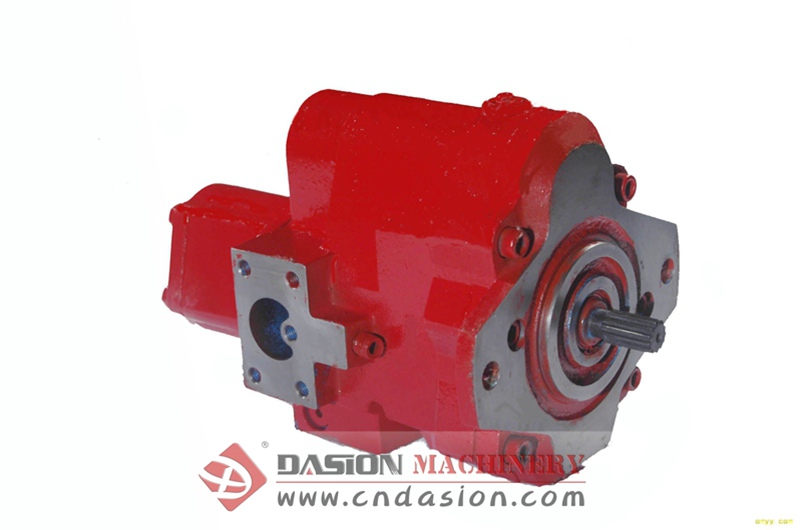

Features of Concrete Boom Pump

1. DS51/52 series concrete boom pumps are combined with high reliability, economy, safety and durability.
2. It has reasonable collocations for the chassis system, power system, control system, hydraulic system and pumping system.
3. Chassis adopts SINOTRUCK/DONGFENG/FAW/SHACMAN brands, strong carrying capacity, good dynamic performance and low fuel consumption.
4. Emission system is up to EURO V standard, customers can select EURO III/IV/V for choice, low noise and easy to repair.
5. It has the characteristics of flexible foldable arms, little space occupying support legs, easily movable chassis.
6. Equipped with H/L pressure switch, high outlet pressure, the whole concrete pump truck can meet the needs of long distance delivery.
