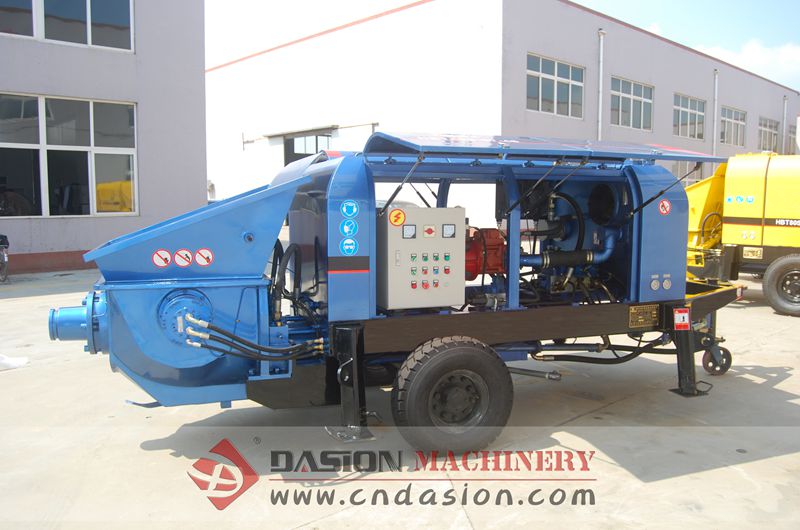

Fine Stone Concrete Pump

  • Max. Mixing Speed: 24r/min
  • Hopper Capacity: 300L
  • Theoretical Max. Discharging Volume: 25-30m³/h
  • Theoretical Max. Delivery Pressure: 12-13Mpa
  • Max. Delivery Frequency: 24-30times /min
  • Outlet Opening Diameter: Φ125mm

XBS and DXBS series fine stone concrete pumps are a kind of mortar conveying equipment specially developed according to the characteristics of floor heating projects.

We're here to help: Easy ways to get the answers you need

concrete mixer
concrete batching plant
concrete truck mixer
concrete pump
concrete placing boom
concrete plant optional parts
concrete vibrator
  • Product Information
  • parameters introduction
  • Product Details

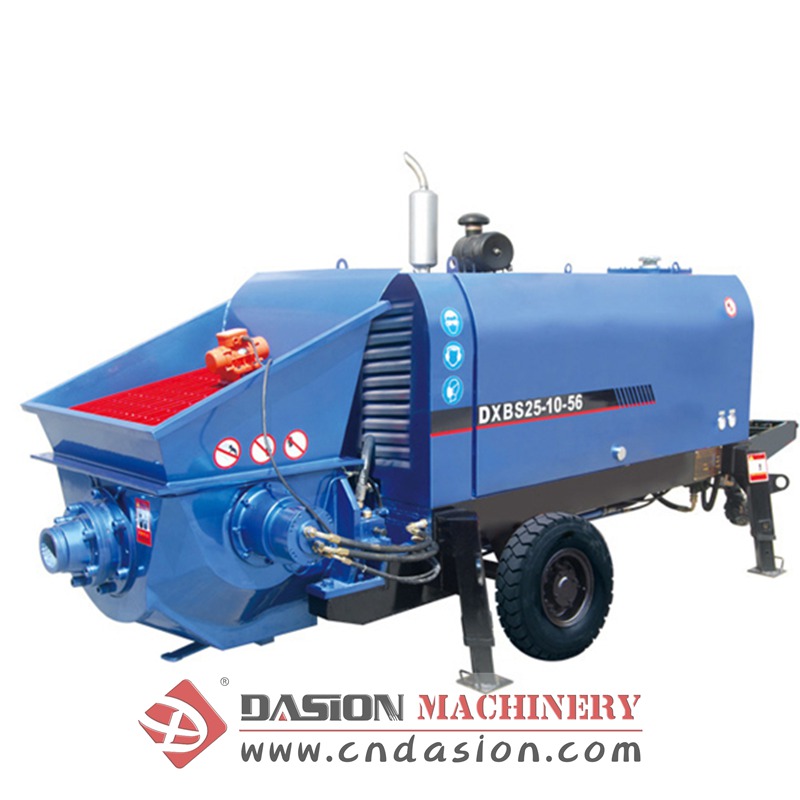

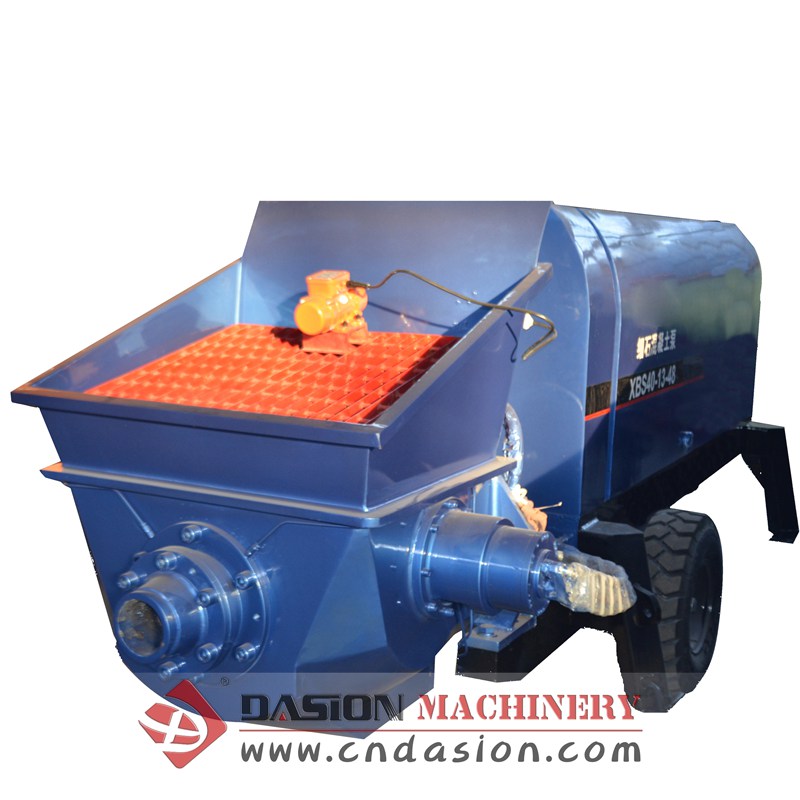

Brief introduction to XBS and DXBS series fine stone concrete pumps

1. XBS and DXBS fine stone concrete pumps are a kind of mortar conveying equipment specially developed according to the characteristics of floor heating projects. They are extensively applied in the large-area and highly efficient construction of fine stone concrete or mortar stuffing in floor heating projects.
2. XBS and DXBS fine stone concrete pumps are also widely used for the conveying of fine stone concrete, fire-resistant and heat-insulating materials in various construction projects; the delivery of afforesting soil in eco-environmental construction; the pressure grouting of various basic piles.
3. The inner diameter of conveying pipe has developed into Φ100 based on former Φ80 so that XBS and DXBS series products can convey concrete with diameter no more than 30mm, which makes XBS and DXBS series products have broader applications such as the conveying of mortar, small stones and large aggregate concrete.

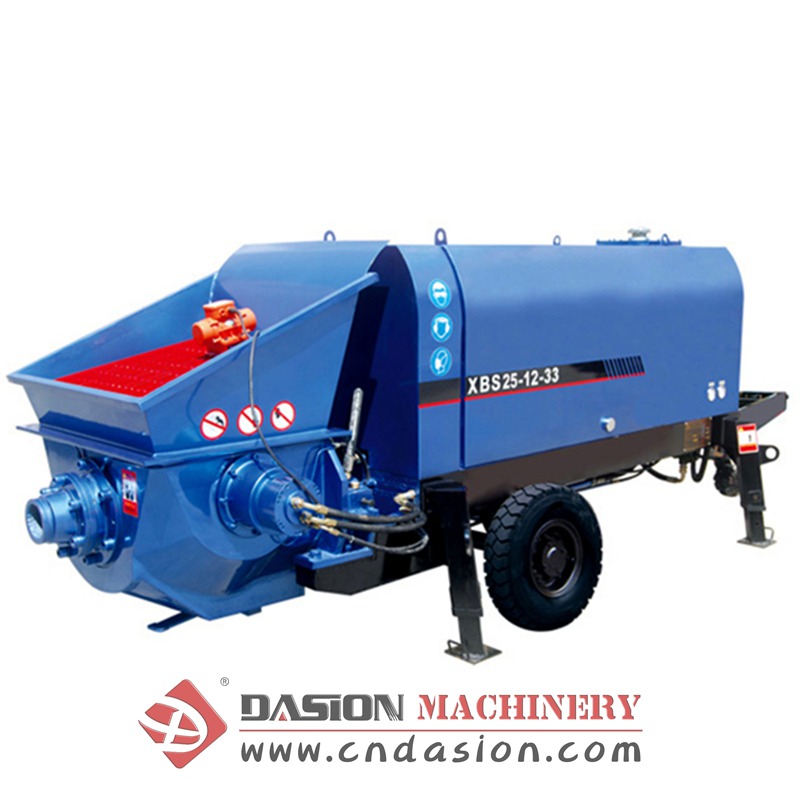

Items Unit XBS25-12-33 XBS30-13-40
Theoretical Max. Discharging Volume m³/h 25 30
Theoretical Max. Delivery Pressure Mpa 12 13
Max. Delivery Frequency 次 times /min 24 30
Outlet Opening Diameter mm Φ125 Φ125

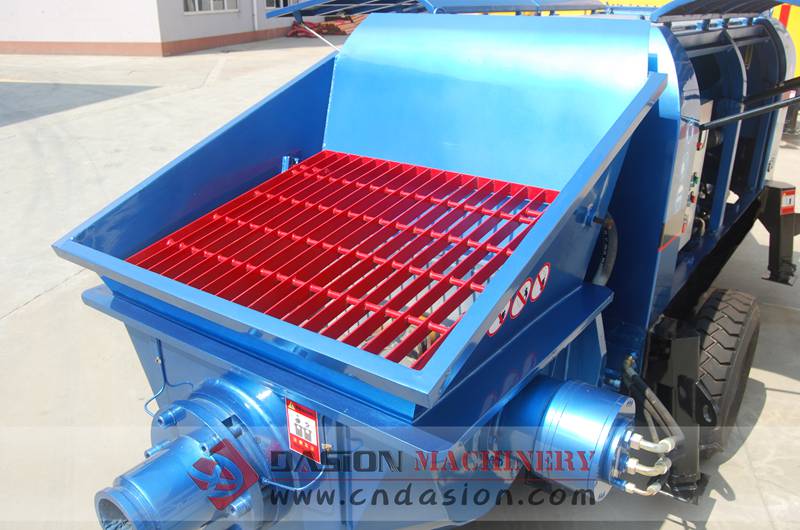

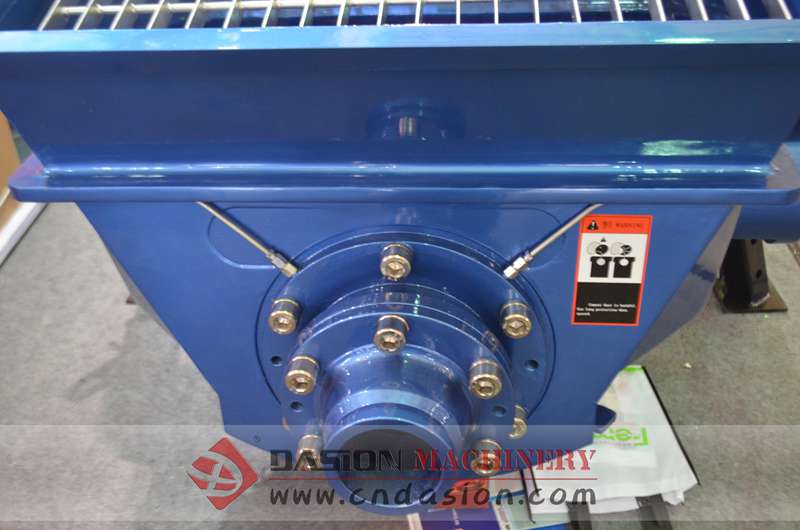

Hopper Capacity L 300 300
Rated Voltage V ～380 ～380
Max. Oil Pressure of Pumping System MPa 25 25
Max. Oil Pressure of Mixing System MPa 9 9
Max. Mixing Speed r/min 24 24
Oil Tank Capacity L 200 200
Max. Diameter of Aggregates mm ≤30（≤20） 30

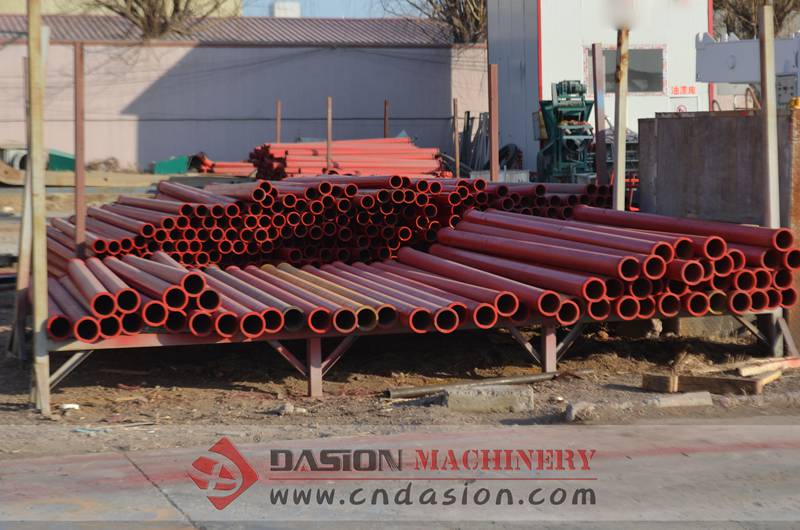

Inner Dia. of Delivery Pipe mm Φ100/Φ80 Φ100/Φ80
Overall Weight Kg 2000 2100
Pulling Speed Km/h ≤8 ≤8




Features and Advantages Of Fine Stone Concrete Pump

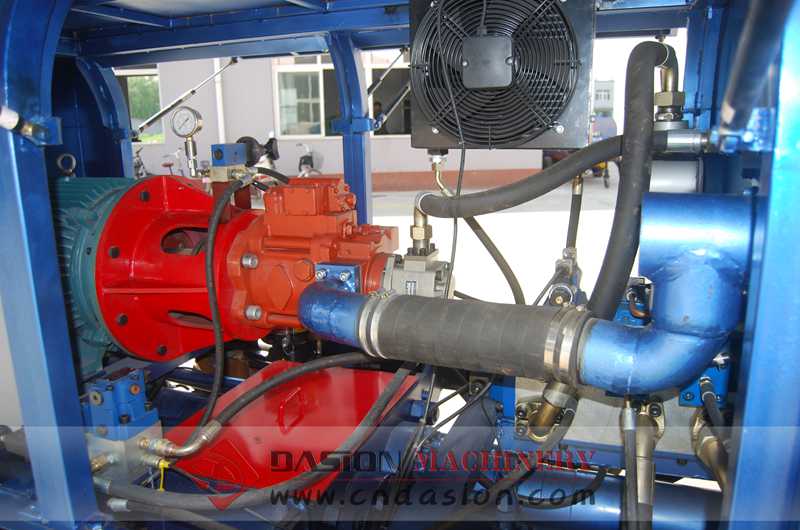

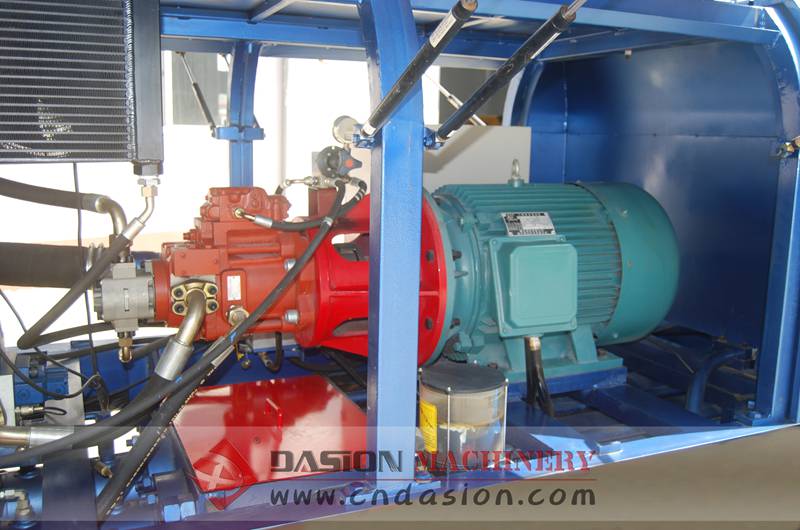

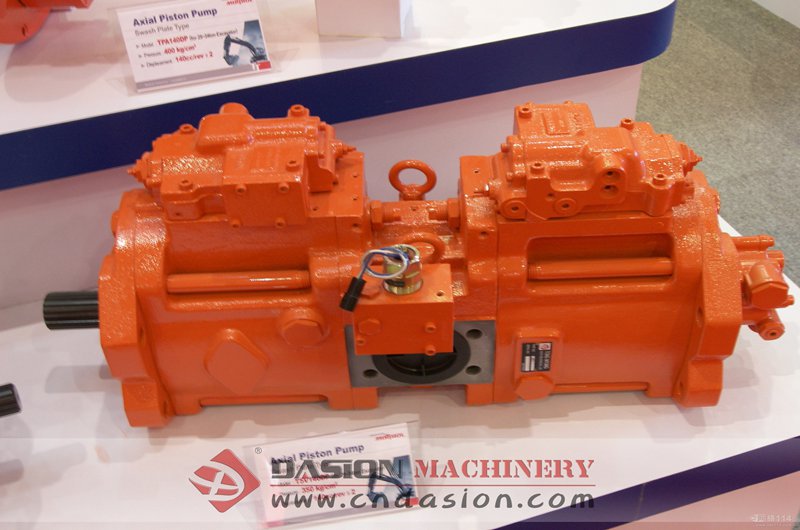

1. High efficient hydraulic system with new high-speed commutation mode, which makes the pump commutation efficiency increase by 12%.
2. Large displacement pumping system makes the suction efficiency increased by 6%, to meet the needs of a variety of working conditions.

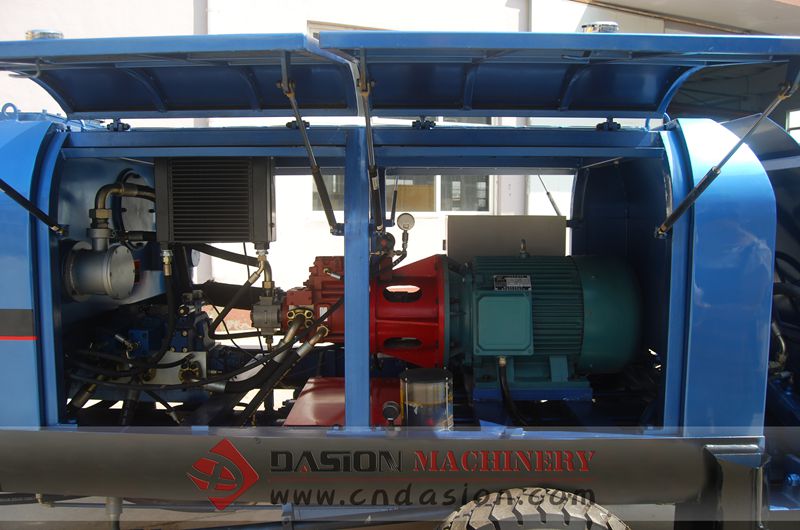

3. Overall hydraulic reversing open system has the advantage of high cleanliness of hydraulic oil, low oil temperature and small impact on commutation.
4. Master cylinder seal adopts waterproof technology, which can effectively prevent water from entering the hydraulic system, to prevent hydraulic oil emulsification.

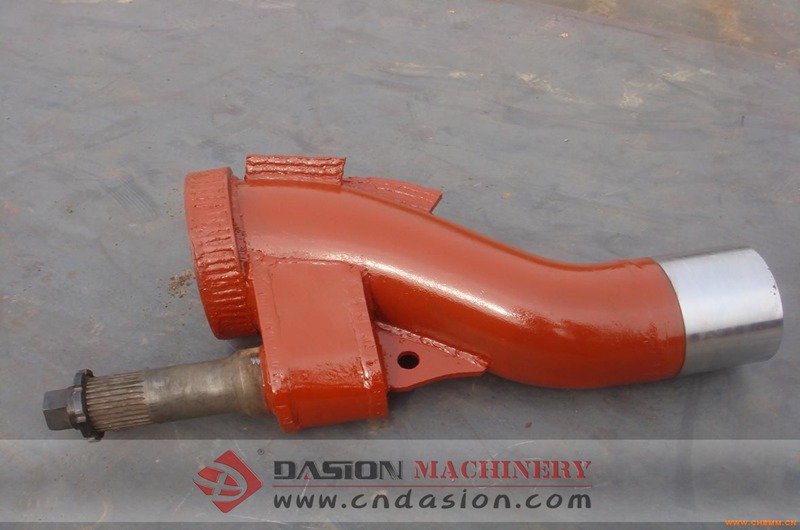

5. Advanced S tube valve enjoys the advantages of good sealing, while quick-wear parts are economic and durable, easy to replace.

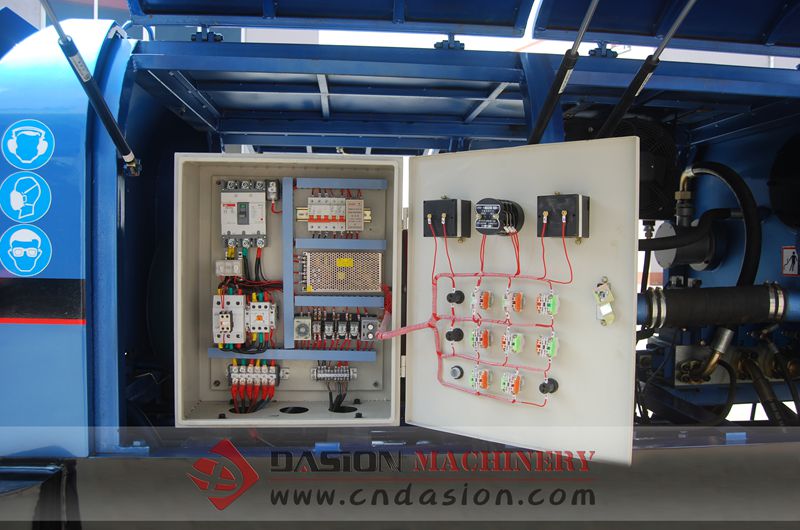

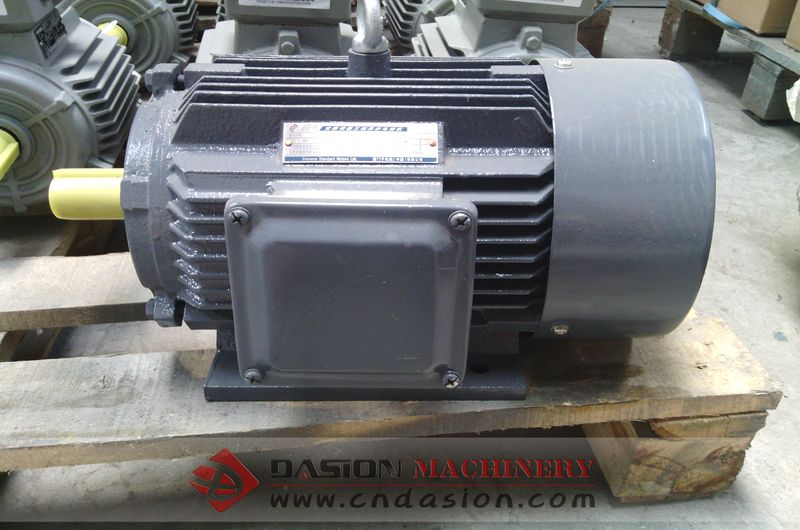

6. Hydraulic and electrical main components use internationally renowned brands with high reliability.
