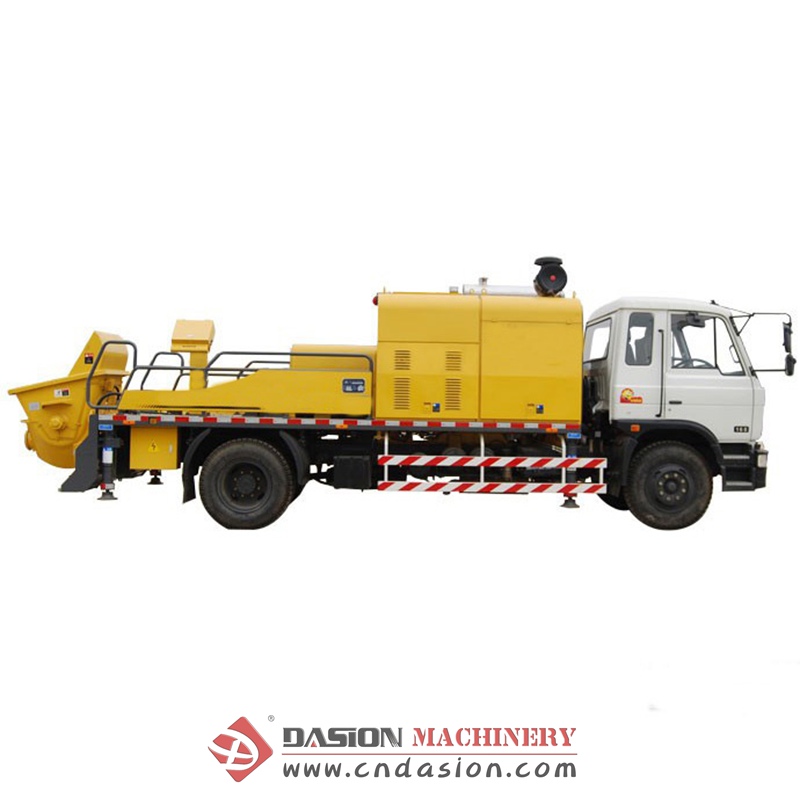

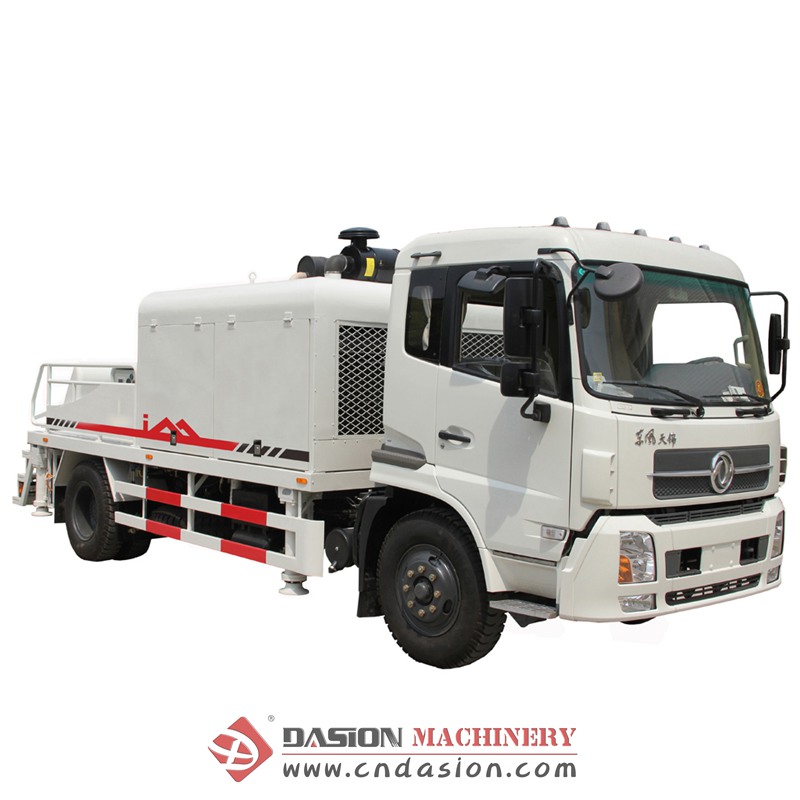

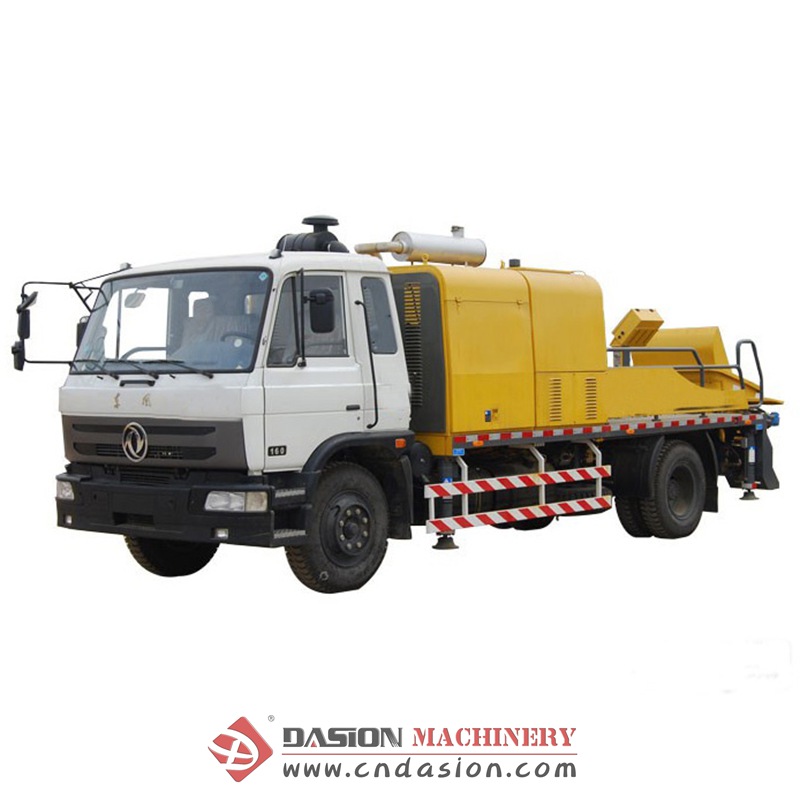

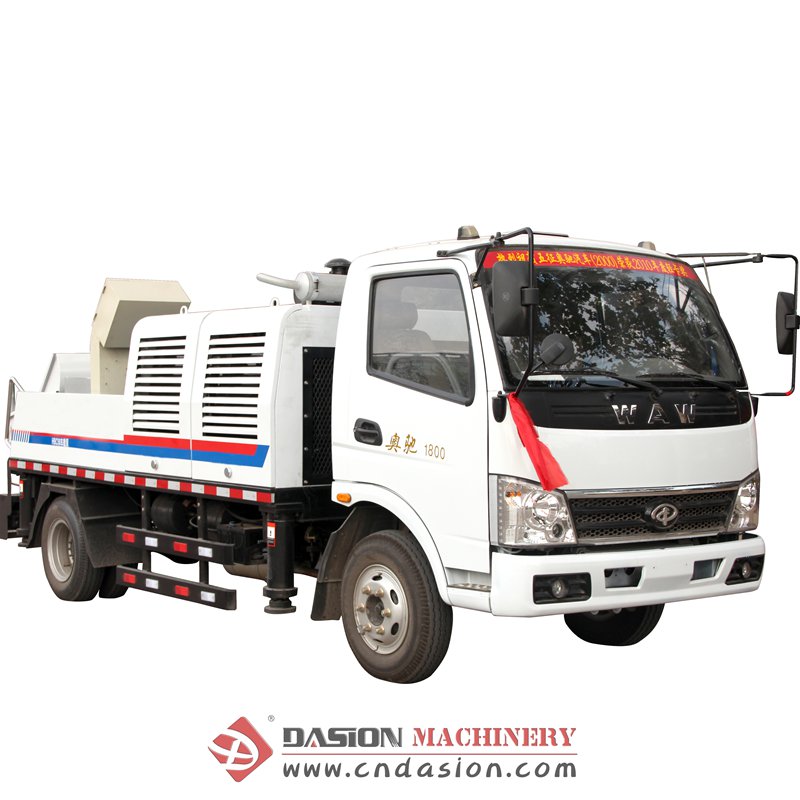

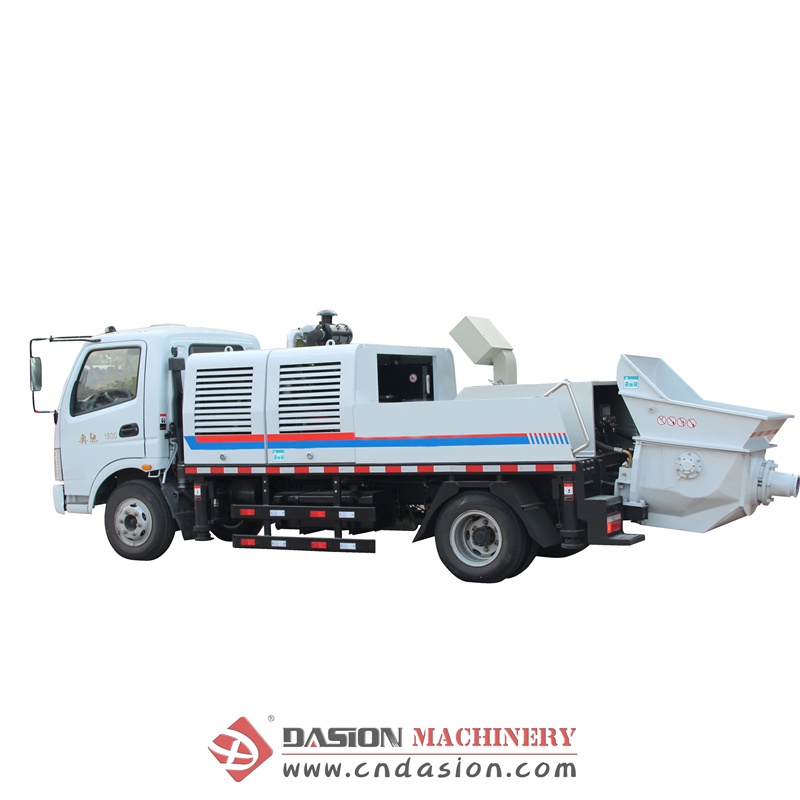

Truck Mounted Concrete Pump

Truck mounted concrete pump combines the superiority of trailer-mounted concrete pump and concrete pump truck, which is more flexible and mobile than trailer-mounted concrete pump.

We're here to help: Easy ways to get the answers you need

concrete mixer

JS Twin Shaft Concrete Mixer YJS Twin-shaft Concrete Mixer JZC Portable Concrete Mixer JZM Electrical Concrete Mixer JZR Diesel Concrete Mixer JN Vertical Concrete Mixer

concrete batching plant

Bucket Concrete Batch Plant Belt Concrete Batching Plant Mobile Concrete Batching Plant Container Concrete Batch Plant HZS25 Concrete Batching Plant HZS35 Concrete Batching Plant HZS50 Concrete Batch Plant HZS60 Concrete Batching Plant HZS120 Concrete Batch Plant HZS180 Concrete Batching Plant

concrete truck mixer

Concrete Truck Mixer Concrete Mixing Drum DS2.5 Self-loading Concrete Mixer Truck DS1.5/1.5F Self Loading Concrete Mixer Truck

concrete pump

JBT/DJBT Concrete Mixer Pump Motor Concrete Trailer Pump Concrete Boom Pump Diesel Concrete Trailer Pump Fine Stone Concrete Pump Truck Mounted Concrete Pump Truck Mounted Concrete Mixer Pump

concrete placing boom

Stationary Concrete Placing Boom Mobile Concrete Placing Boom Self-Climbing Concrete Placing Boom

concrete plant optional parts

Cement Silo Screw Conveyor PLD Aggregate Batching Machine Electric Control System

concrete vibrator

Electric Poker Concrete Vibrator Diesel Engine Poker Concrete Vibrator Pneumatic Motor Poker Vibrator High-speed Railway Track Board Oscillator Equipment

Product Information
parameters introduction
Product Details

Introduction Of Truck Mounted Concrete Pump

Truck mounted concrete pump combines the superiority of trailer-mounted concrete pump and concrete pump truck, which is more flexible and mobile than trailer-mounted concrete pump. No need of transportation, loading and unloading, and fixed installation. Stronger pumping performance and faster pumping speed. Compared to the concrete pump truck, it enjoys the advantages of small footprint, low price, high pumping height and distance, cost-effective etc. It is suitable for small production, multi-site, complex construction environment and other conditions. Truck mounted concrete pump can choose diesel or electricity as energy flexibly, which can not only be connected to an external power supply by using top motor, but also use top diesel engine to finish pumping operation, select the power according to the actual situation.

Items		Unit	HBC50-12-56		HBC-100-13-162RS
Fuel type			Diesel		Diesel
Displacement/Power		L/KW	85		4.5/132
Tyre model			7.50		9.00
Axle base		m	3.66		4.7
Qty. of axles			2		2
Max. driving speed		Km/h	60		90
Wheel base（front/back）		mm	1530/1600		1880/1800
Brand of diesel engine			Tianjin LOVOL		WEICHAI Brand
Diesel engine model／power		KW	1004-4CP01/56		YC6108ZGB /162
Main pump			HanChuan single pump 112/140		Rexroth 190
Oil pressure of system		Mpa	32		32
Fuel tank capacity		L	180		290
Hydraulic Oil tank capacity		L	200		600
Cooling mode of hydraulic system			Fan cooling		Fan cooling
Max. theoretical capacity		m3/h	H-pressure	20	H-pressure	55
		m3/h	L-pressure	50	L-pressure	100
Pumping distance (H-pressure)	Max. Horizontal	m	125A pipe	300	125A pipe	880
	Max. Vertical	m	125A pipe	120	125A pipe	200
Hopper capacity		m3	0.6		0.6
Feeding height		mm	≤1300		≤1350
Concrete slump		cm	14～23		14～23
Max. aggregate diameter		mm	Crushed stone:40 / Pebble：50		Crushed stone:40 / Pebble：50
Length ×Width × Height(mm)		mm	7200×2100×2750		8754×2470×2760
Full-load total weight		Kg	6500		12000
